BulletShield™  BT1000

The BT1000, HG3000 & RF8000 are the first of their kind bullet resistant rolling steel doors.

NO FIRE

RATING

NO SMOKE

RATING

OVERHEAD

COILING

 BULLET RESISTANT

FIRE

RATED

 90 MIN FIRE RATED UNDER UL10B

SMOKE RATED

SMOKE AND DRAFT RATED UNDER UL1784

OVERHEAD COILING

COIL BOX ABOVE OPENING

NO

EGRESS

 NOT AVAILABLE WITH EGRESS

All the specs  you need. Ready for your next project.

Download Specs

Clear, simple, complete. Download every detail you need.

 Download Details

Get straight to the details. Everything you need all in one click.

Resource Hub

Uncompromising security, every time.

This security door provides bullet resistance for the most extreme security threats. Designed for the worst case scenarios, this service door provides security and safety when needed most.

Level 1 Bullet Resistance

Ideal for retail storefronts, reception counters, customer-facing areas, and commercial spaces needing a foundational level of ballistic security.

Level 3 Bullet Resistance

Well-suited for financial institutions, law enforcement and government facilities, schools, healthcare settings, and higher-traffic retail or commercial spaces.

Level 8 Bullet Resistance

 Best for high-security commercial buildings, residential safe rooms, critical infrastructure sites, data centers, military installations, and sensitive government facilities.

The details that matter.

Ratings

  • Not available (see Model FSFD, CFS, T2000  or T5000 if fire rating is needed,  will not meet bullet resistant requirements)


Egress

Not available (See IS3000E if egress is needed, will not meet bullet resistant requirements)

Operation

  • Electric Motor Operation - Outboard Motor
  • Hand chain – emergency manual override
  • Programmable delayed automatic closing
  • Optional security modes – standard or enhanced

Testing

  • UL752 - 11th Edition for bullet resistance ratings:


  • BT1000 - Level 1 ballistics rating providing protection from all caliber handguns up to 9mm


  • HG3000 - Level 3 ballistics rating providing protection from large bore, large caliber handguns up to .44 magnum.


  • RF8000 - Level 8 ballistics rating providing protection from military rifles such as AK-47 and M-14.

Available Sizes

  • Widths to 23'-0"
  • Heights to 48'-0"


  • For larger sizes and custom configurations consult the factory


Finishes

  • McKeon Sterling Grey
  • RAL Powder Coat

What makes the BulletShield™  BT1000, HG3000, RF8000 different?

BT1000    - Achieved a Level 1 ballistics rating providing protection from all caliber handguns up to 9mm.

HG3000  - Achieved a Level 3 ballistics rating providing protection from large bore, large caliber handguns up to .44 magnum.

RF8000  - Achieved a Level 8 ballistics rating providing protection from military style rifles such as AK-47 & M-14.

Download our specs.

Specification Key


-G = McKeon Sterling Grey (one color option)

-PC = Powder Coat, 188 color selection from standard colors (download chart here)

BT1000 | Level 1 Bullet Resistance

McKeon Sterling Grey (-G)

Standard Finish

RAL Powder Coat (-PC)

188 color selection

HG3000 | Level 3 Bullet Resistance

McKeon Sterling Grey (-G)

Insulated (-IS)

RAL Powder Coat (-PC)

Insulated (-IS)


RF8000 | Level 8 Bullet Resistance

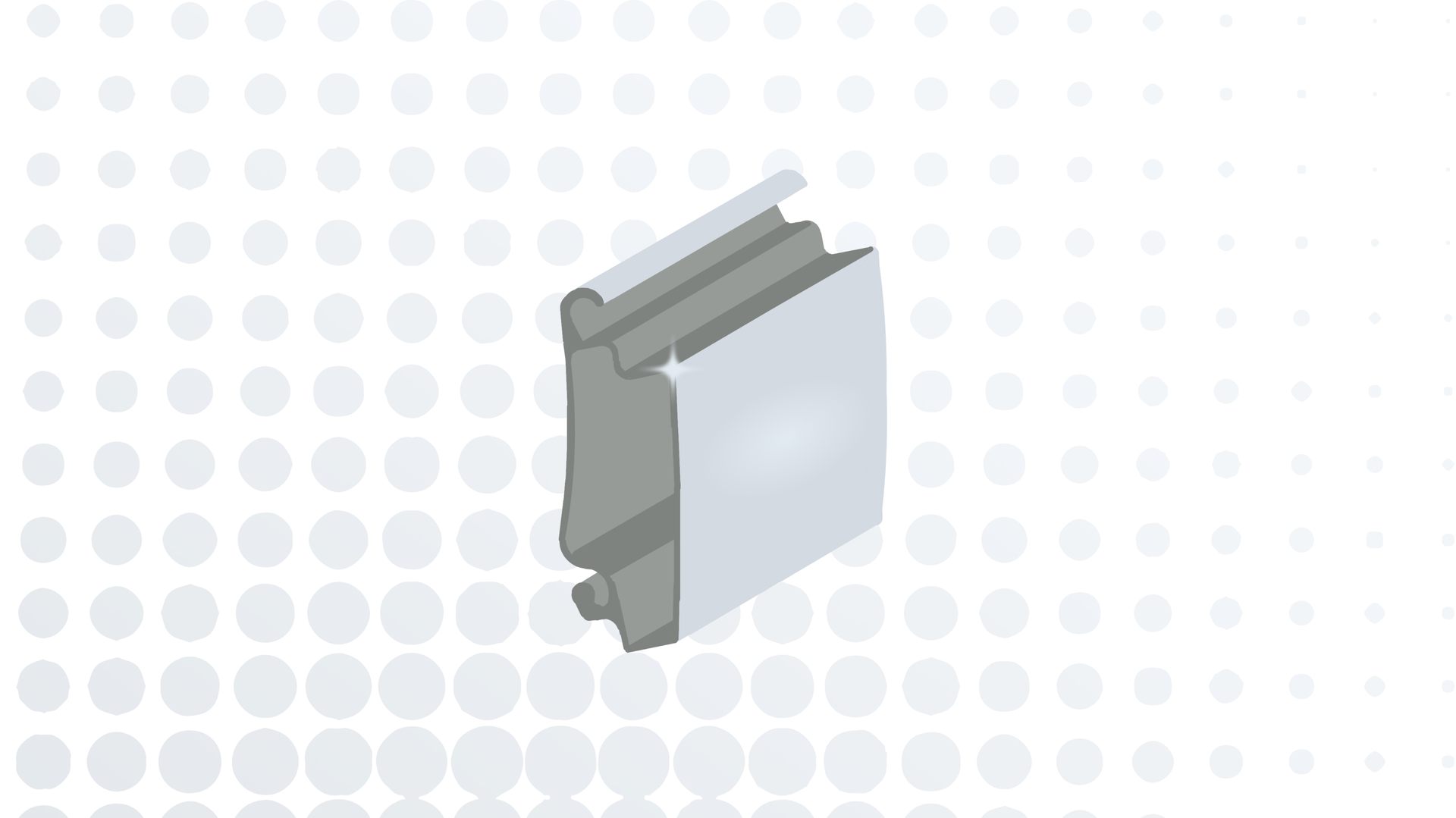

McKeon Sterling Grey (-G)

Standard Finish

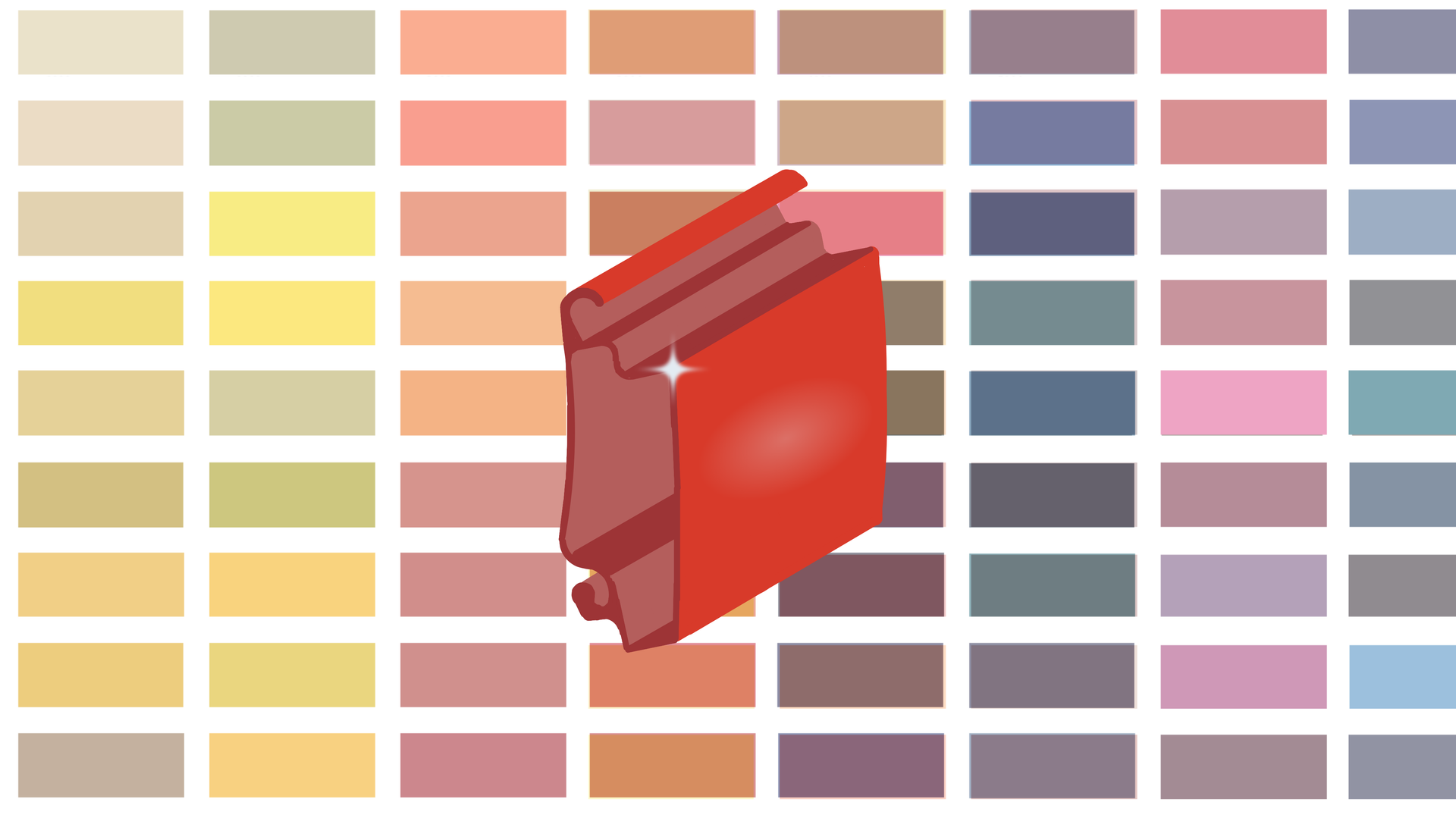

RAL Powder Coat (-PC)

188 color selection

RAL Powder Coat Chart

Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.

Download our details.

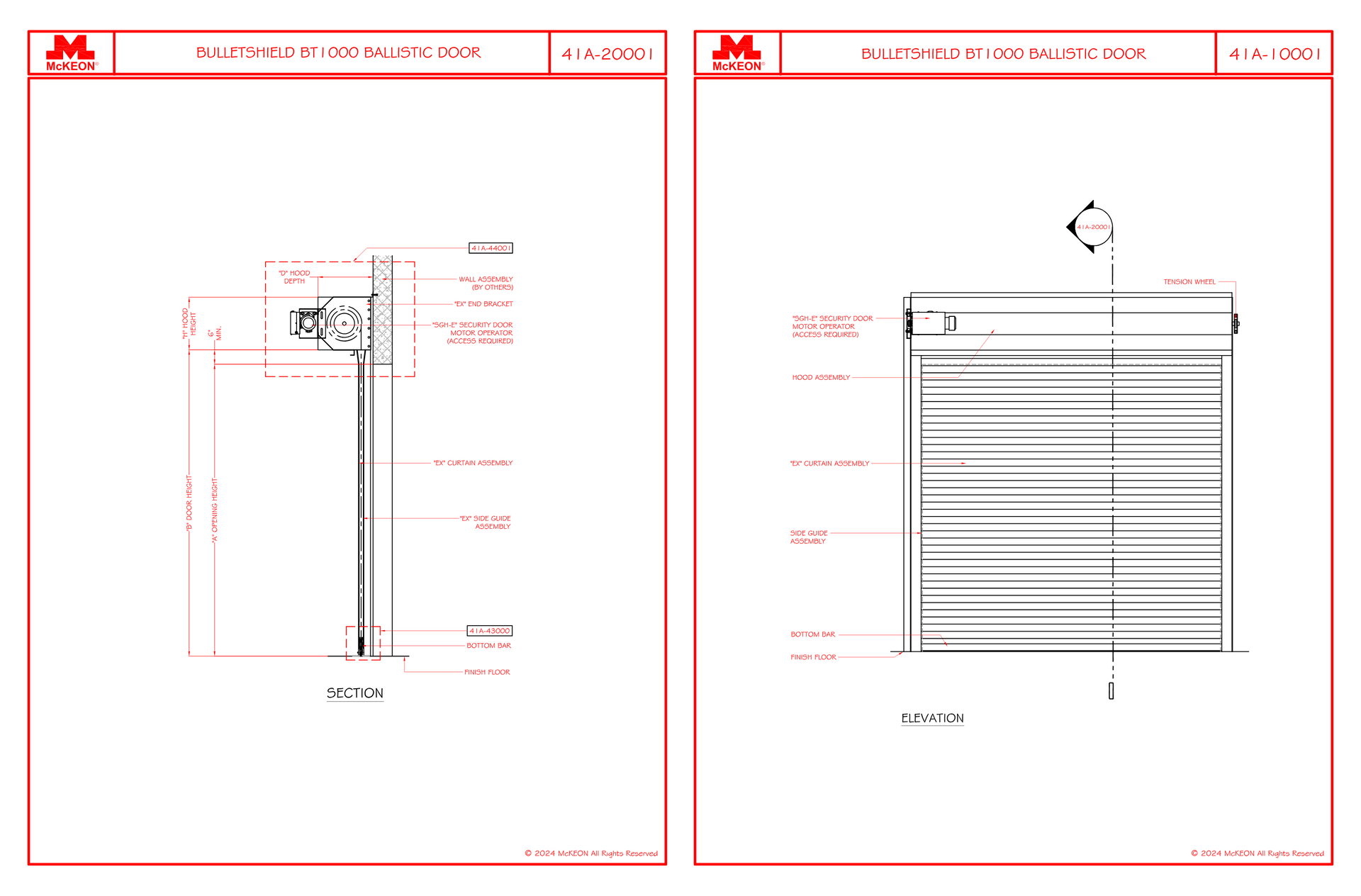

BT1000

Details

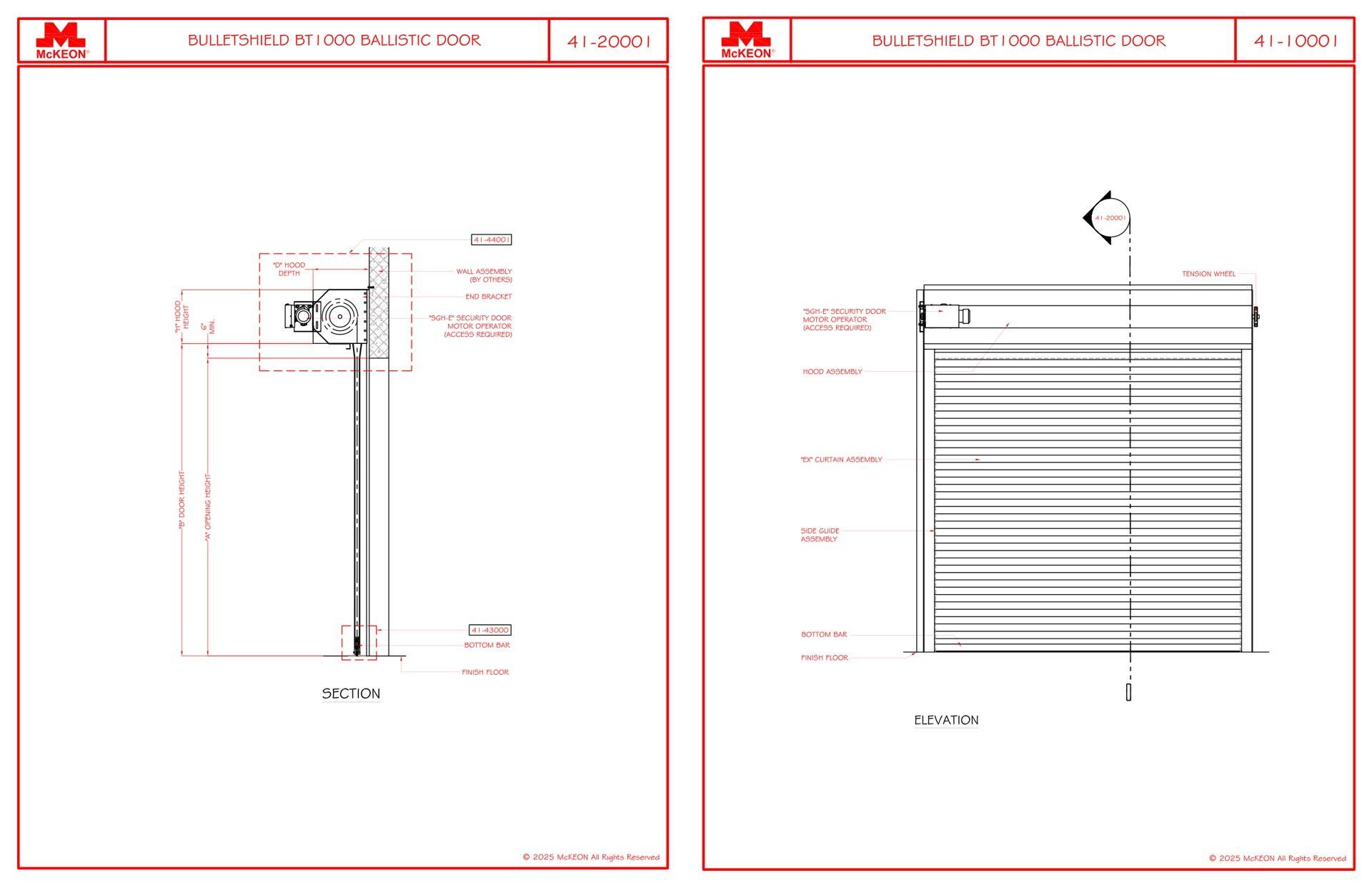

BT1000 Details

  • Overhead Coiling
  • Electric Motor Operation
  • Level 1 Ballistic Resistance

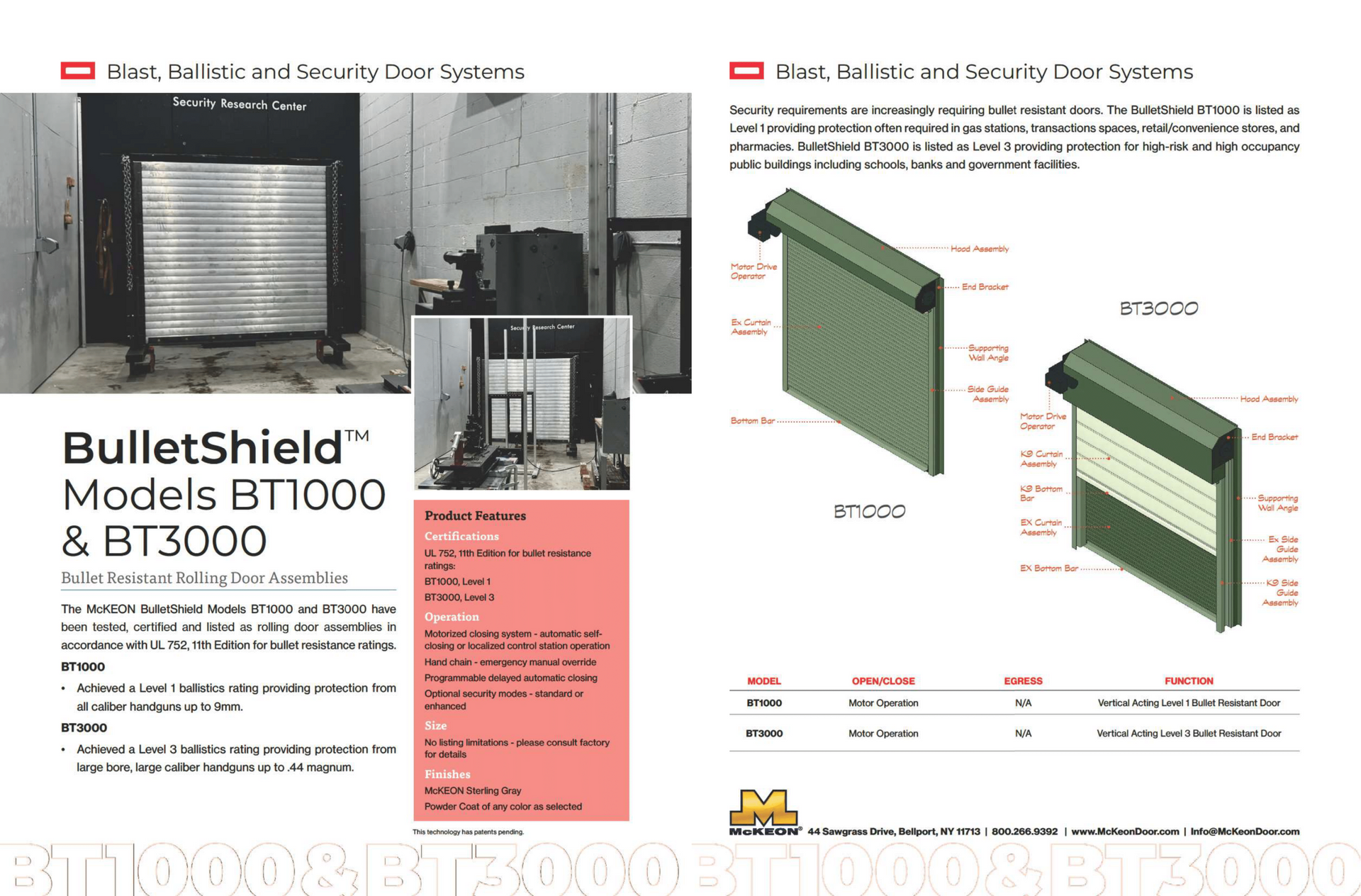

BT1000 Cut Sheet

  • Overhead Coiling
  • Electric Motor Operation
  • Level 1 Ballistic Resistance

HG3000

Details

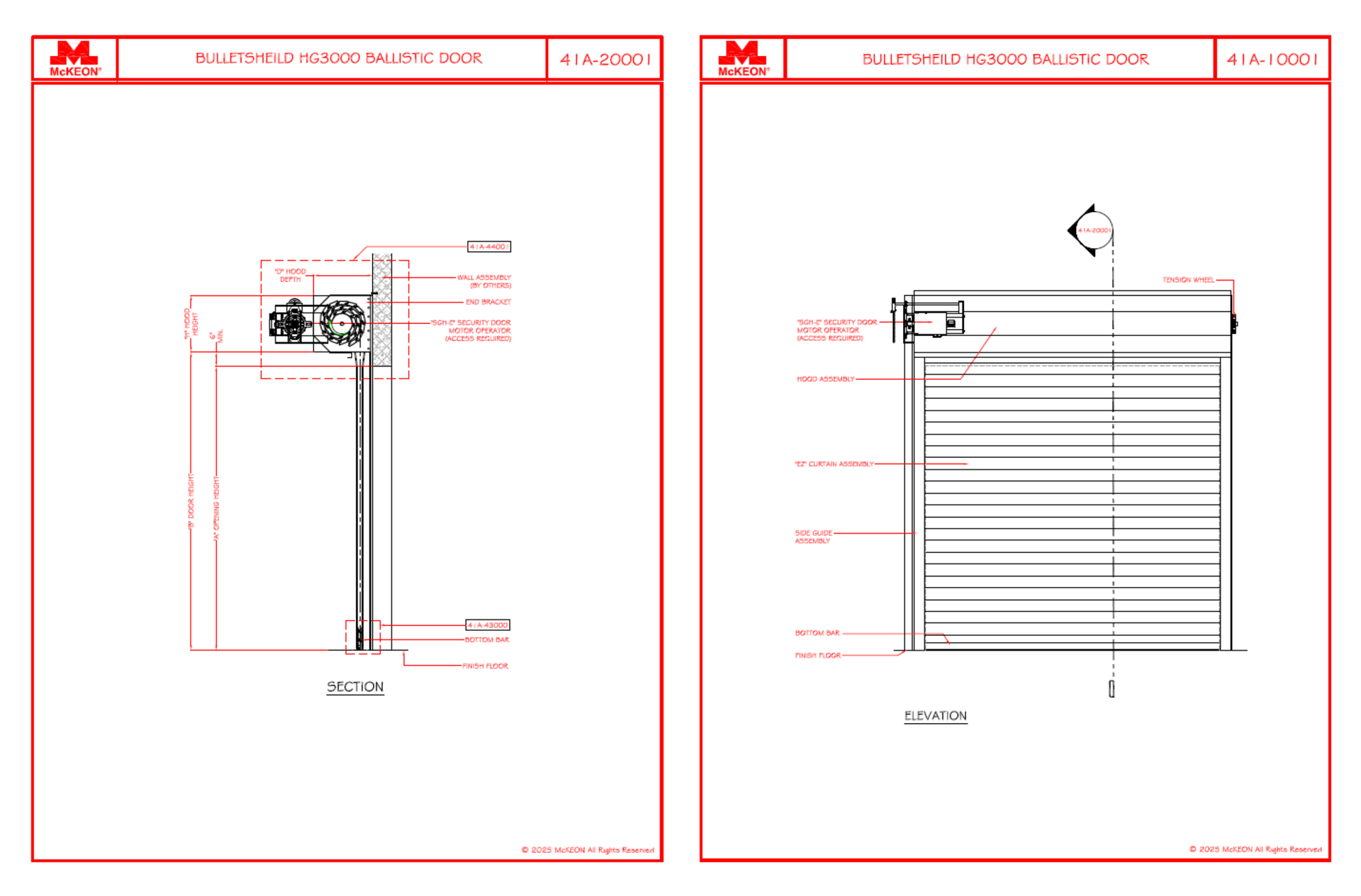

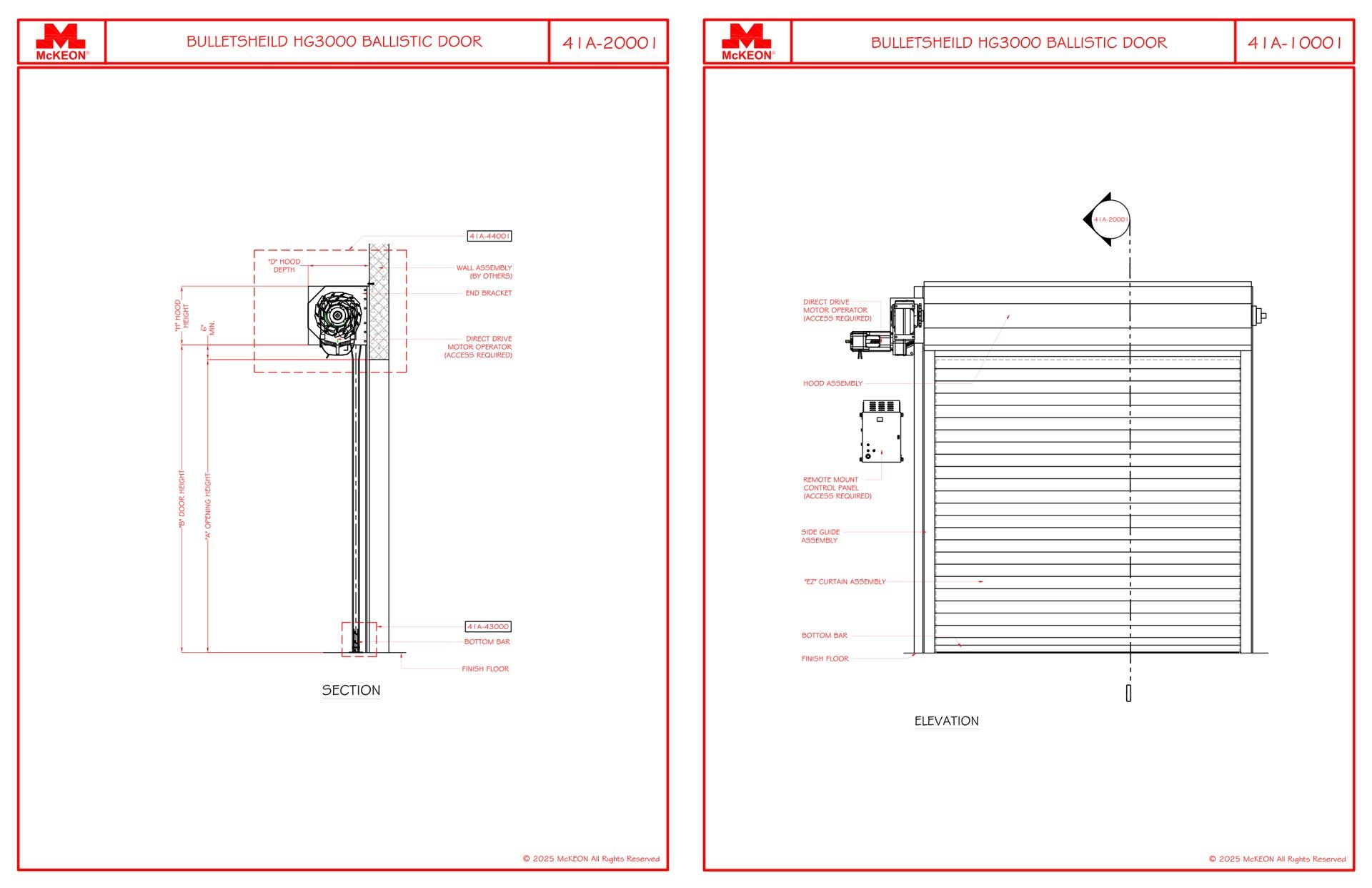

HG3000 Details

  • Overhead Coiling
  • Electric Motor Operation
  • Level 3 Ballistic Resistance

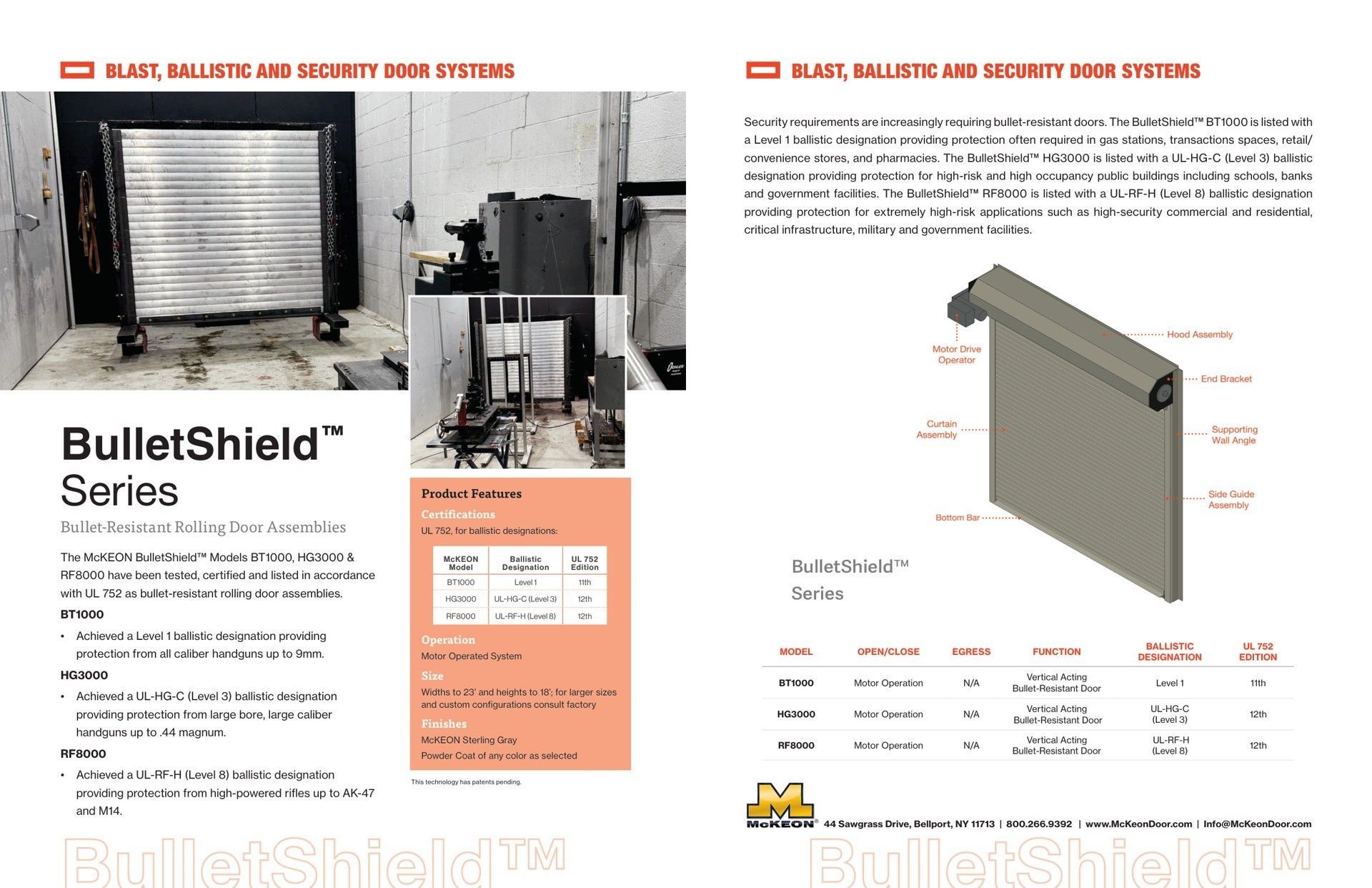

HG3000 Cut Sheet

  • Overhead Coiling
  • Electric Motor Operation
  • Level 3 Ballistic Resistance

RF8000

Details

RF8000 Details

  • Overhead Coiling
  • Electric Motor Operation
  • Level 8 Ballistic Resistance

RF8000 Cut Sheet

  • Overhead Coiling
  • Electric Motor Operation
  • Level 8 Ballistic Resistance

Download individual PDF sheets, CADs and more BELOW.

Download it all.

BT1000  Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download All .PDF Files

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download ALL .DWG Files

Access detailed product specifications. Download a Word documenttemplate tailored to the finishes listed above for seamless project planning.



  • BT1000-G (McKeon Stelring Grey)
  • BT1000-PC (RAL Powder Coat Selection)



Download All .DOCX Files

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.




• BT1000 Series Product Cut Sheet

• RAL Color Chart




Download All .PDF Files

Access third-party testing reports that verify this product meets all required standards. Download the complete listing report below.




• Listing Report BT1000





Download All .PDF Files

HG3000  Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download All .PDF Files

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download ALL .DWG Files

Access detailed product specifications. Download a Word documenttemplate tailored to the finishes listed above for seamless project planning.



  • BT3000-G (McKeon Stelring Grey)
  • BT3000-PC (RAL Powder Coat Selection)



Download All .DOCX Files

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.




• HG3000 Series Product Cut Sheet

• RAL Color Chart




Download All .PDF Files

Access third-party testing reports that verify this product meets all required standards. Download the complete listing report below.




• Listing Report BT3000





Download All .PDF Files

RF8000  Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download All .PDF Files

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download ALL .DWG Files

Access detailed product specifications. Download a Word documenttemplate tailored to the finishes listed above for seamless project planning.



  • BT1000-G (McKeon Stelring Grey)
  • BT1000-PC (RAL Powder Coat Selection)



Download All .DOCX Files

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.




• RF8000 Series Product Cut Sheet

• RAL Color Chart




Download All .PDF Files

Access third-party testing reports that verify this product meets all required standards. Download the complete listing report below.




• Listing Report BT1000





Download All .PDF Files

Already know the Wind, Blast, Ballistics or Forced Entry rated product you're looking for?

FEMA & Wind Rated Doors

SafeSpace500   - FEMA 361 & ICC 500 wind rated doors


Operational Wind Loaded Doors

Dynamic 110™ - Operational Wind Load of 110 mph


Blast Resistant

BlastShield™ BL6000 - 10 PSI Blast Rated and ASTM Damage Level Category II


Forced Entry

EntryShield™ FE6000 - 60 Minutes Forced Entry


Ballistics Rated

BulletShield™ BT1000 -  large bore, large caliber handguns up to .44 magnum and military grade rifles

Explore more possibilities.

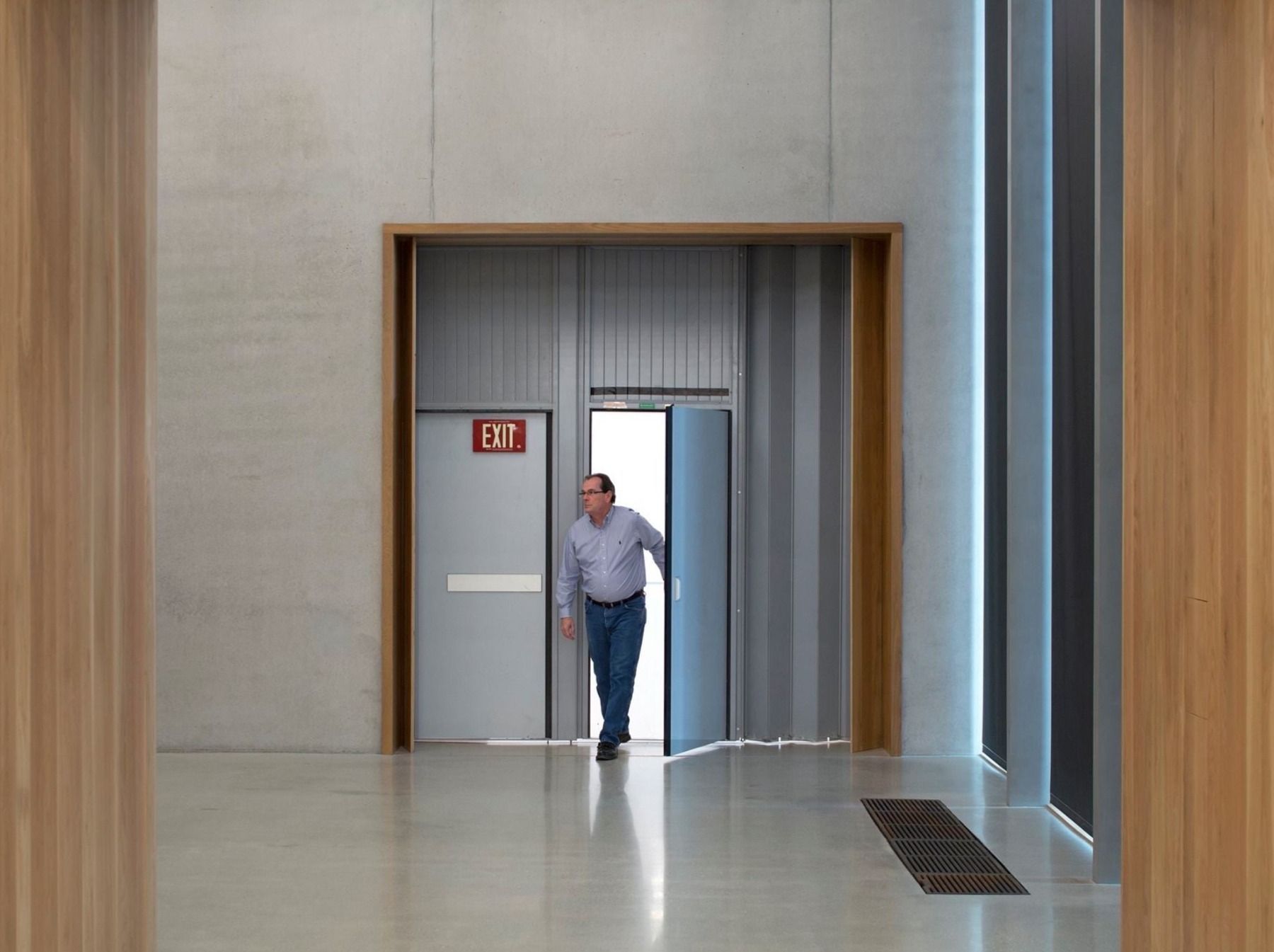

AC8000 Series
