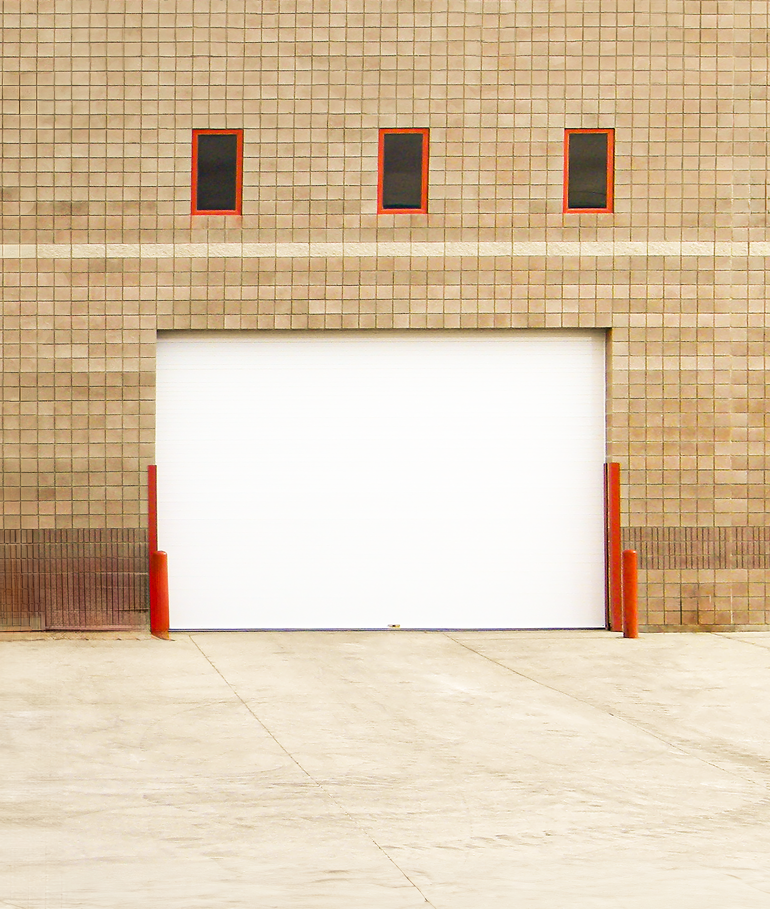

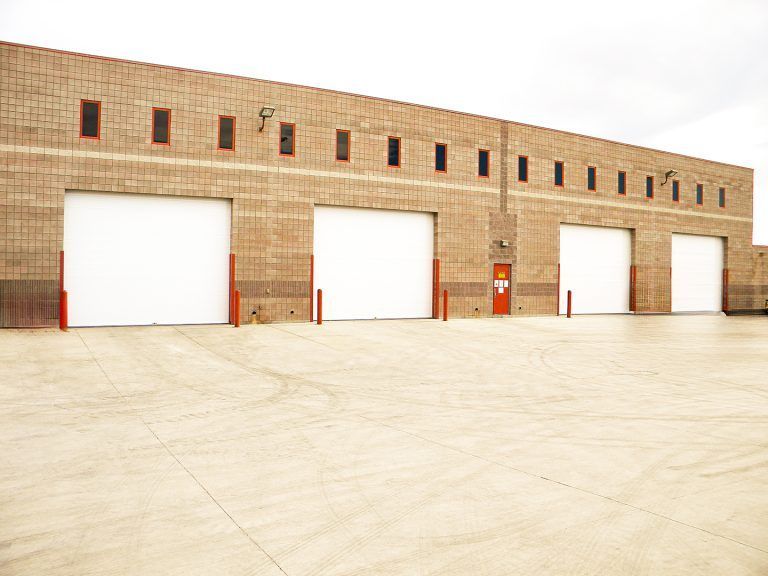

AirShield™ Model AL3014

Precision-engineered to keep the elements where they belong. The AL3014 delivers exceptional air control, reducing infiltration and exfiltration to less than 1.00 cfm/ft² — meeting the latest IECC standards with ease. Its insulated option boosts thermal performance and dampens sound, creating a space that feels just right, in every season.

NO FIRE

RATING

NO SMOKE

RATING

OVERHEAD

COILING

AIR INFILTRATION

FIRE

RATED

 90 MIN FIRE RATED UNDER UL10B

SMOKE RATED

SMOKE AND DRAFT RATED UNDER UL1784

OVERHEAD COILING

COIL BOX ABOVE OPENING

NO

EGRESS

 NOT AVAILABLE WITH EGRESS

All the specs  you need. Ready for your next project.

Download Specs

Clear, simple, complete. Download every detail you need.

 Download Details

Resource Hub

Get straight to the details. Everything you need all in one click.

Control air flow. Maintain peak performance.

Engineered for precision, the AirShield AL3014 delivers exceptional air control with unmatched sealing performance. Designed to exceed the latest energy codes, it keeps unwanted air out while maintaining optimal comfort. This is climate control, refined and effortless.

The details that matter.

Ratings

• Not available with air infiltration

Egress

• Not available with air infiltration


Features

• Listed & labeled - less than 1.00 cfm/sq ft for infiltration and exfiltration.

Available Sizes

• Widths to 24'-0"

• Heights to 48'-0"

• For Larger sizes and custom configurations consult the factory

Finishes

• Aluminum (clear anodized)
• RAL Powder Coat
• Stainless Steel (No. 4 Polish) Guides and bottom bar only

Operation

• Electric Motor Only

What makes the AirShield™ IS3014

different?

ANSI/DASMA 105, DASMA 112 and ASTM E283

Tested and certified to industry-leading standards, the AL3014 meets ANSI/DASMA 105, DASMA 112, and ASTM E283 for air infiltration and exfiltration. It delivers proven performance under the latest IECC energy codes, ensuring superior air control and energy efficiency you can trust.

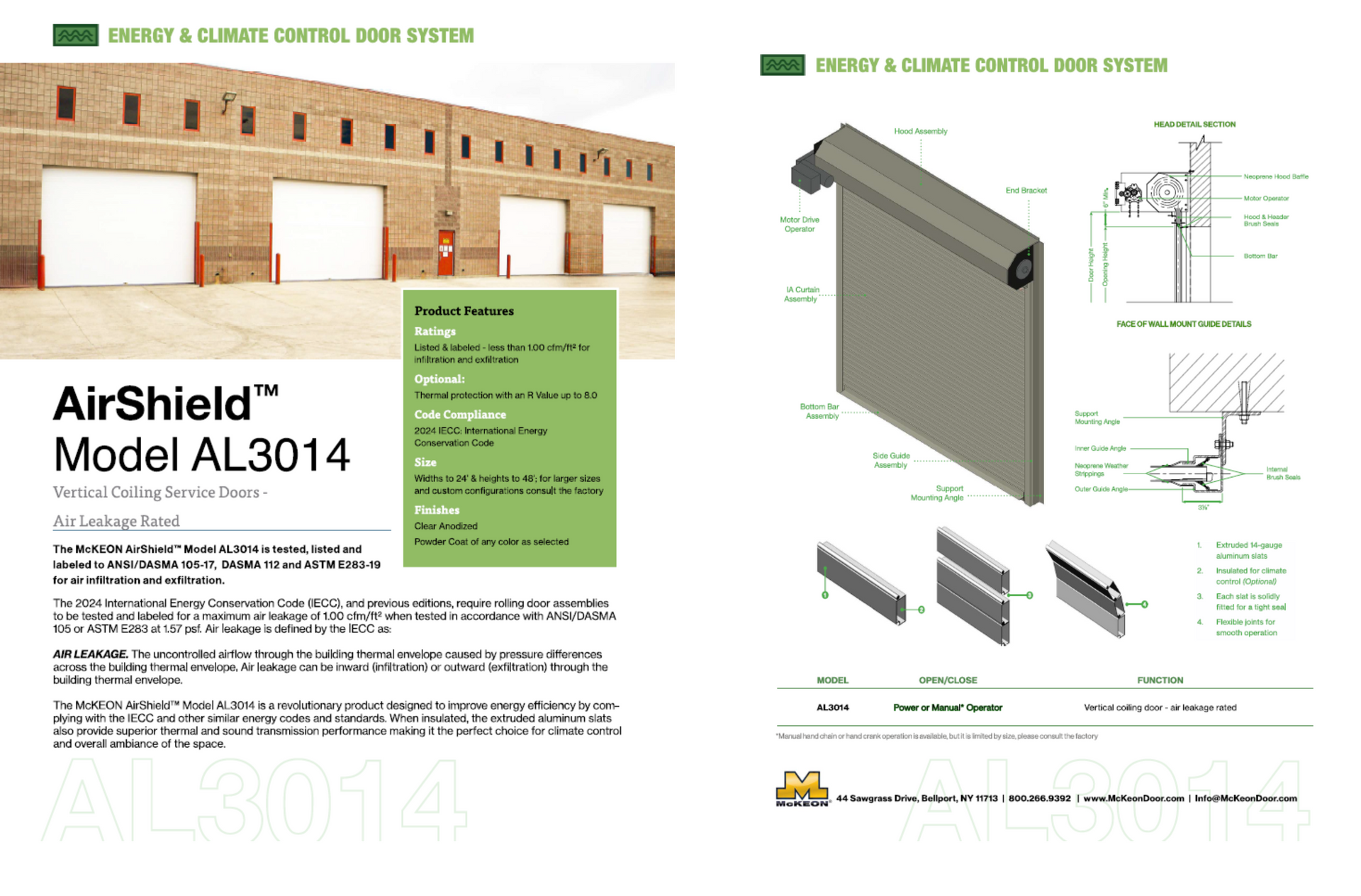

Download our specs.

Specification Key

-A = Clear Anodized Aluminum

-PC = Powder Coat, 188 color selection from standard colors (download chart here)

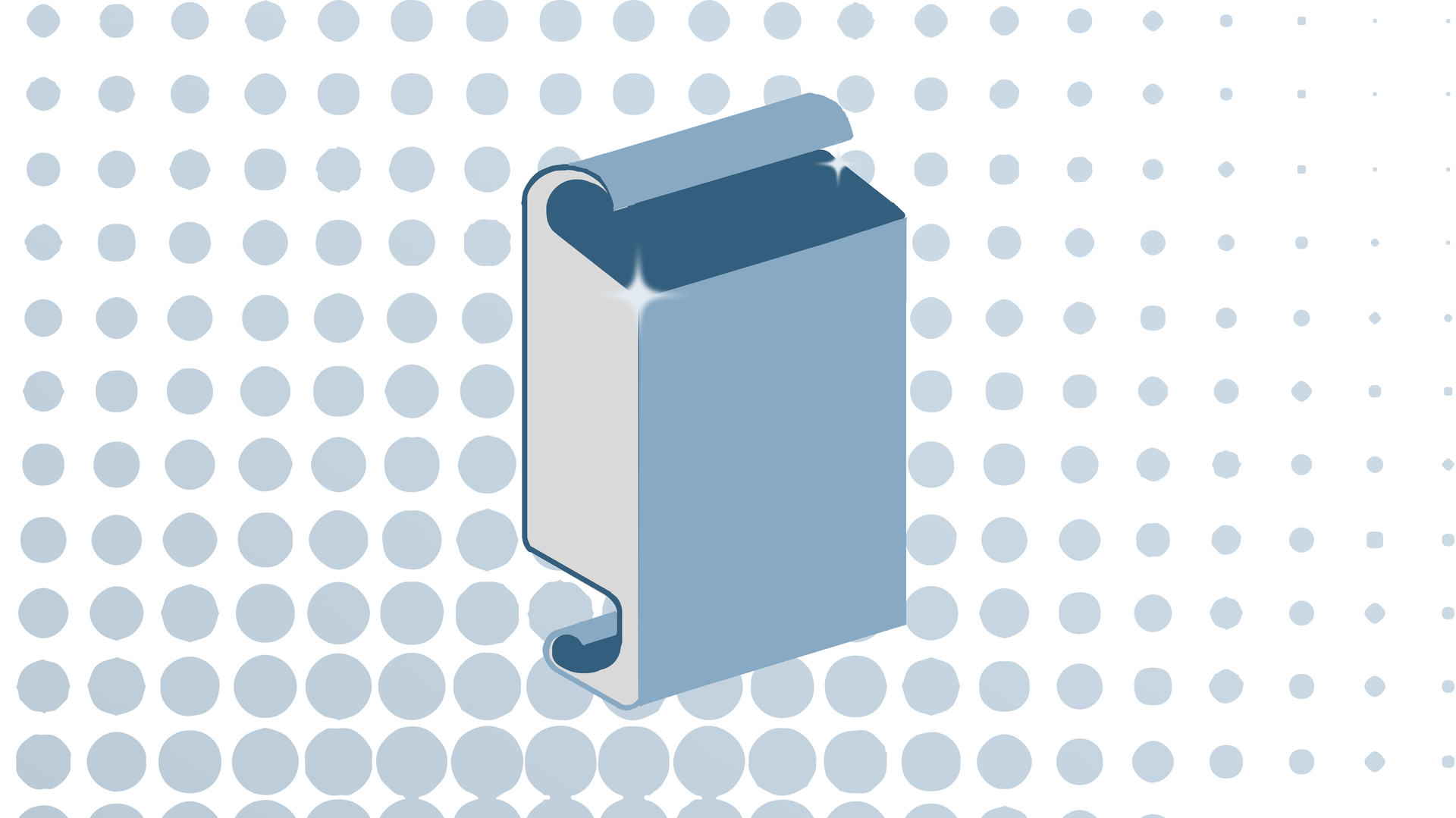

Aluminum (-A)

Clear Anodized (14 G.)

Aluminum RAL Powder Coat (-PC)

188 color selection

RAL Powder Coat Chart

Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.

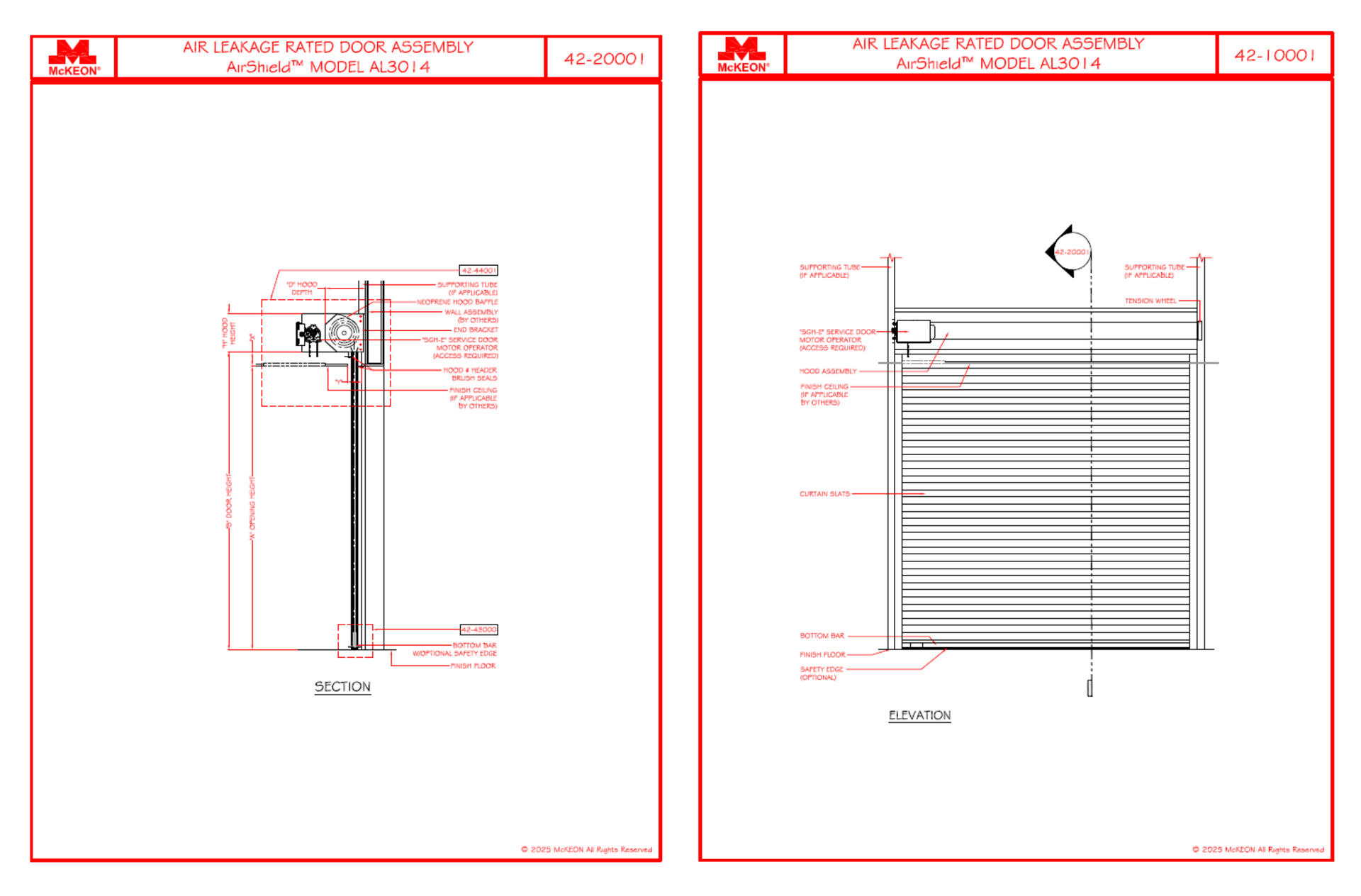

Download our details.

AL3014

Details

Download individual PDF sheets, CADs and more BELOW.

Download it all.

AL3014 Spec Kit

Already know the Wind, Blast, Ballistics or Forced Entry rated product you're looking for?

FEMA & Wind Rated Doors

SafeSpace500   - FEMA 361 & ICC 500 wind rated doors

Operational Wind Loaded Doors

Dynamic 110™ - Operational Wind Load of 110 mph

Blast Resistant

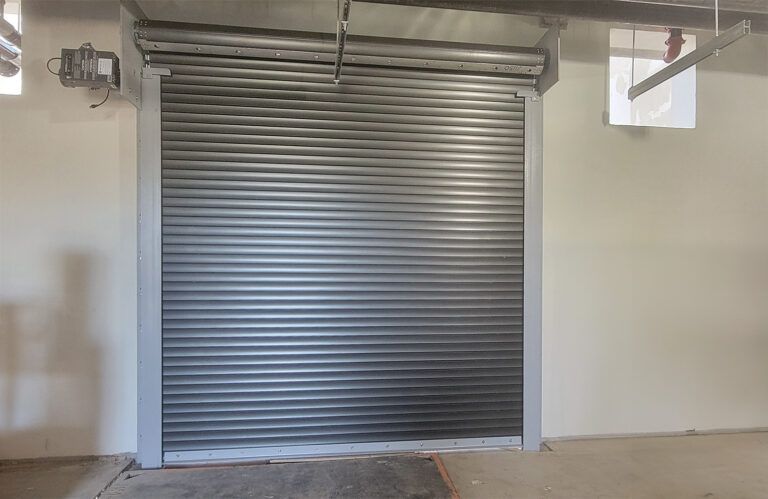

BlastShield™ BL6000 - 10 PSI Blast Rated and ASTM Damage Level Category II

Forced Entry

EntryShield™ FE6000 - 60 Minutes Forced Entry

Ballistics Rated

BulletShield™ BT1000 & BT3000 -  large bore, large caliber handguns up to .44 magnum

Explore more possibilities.

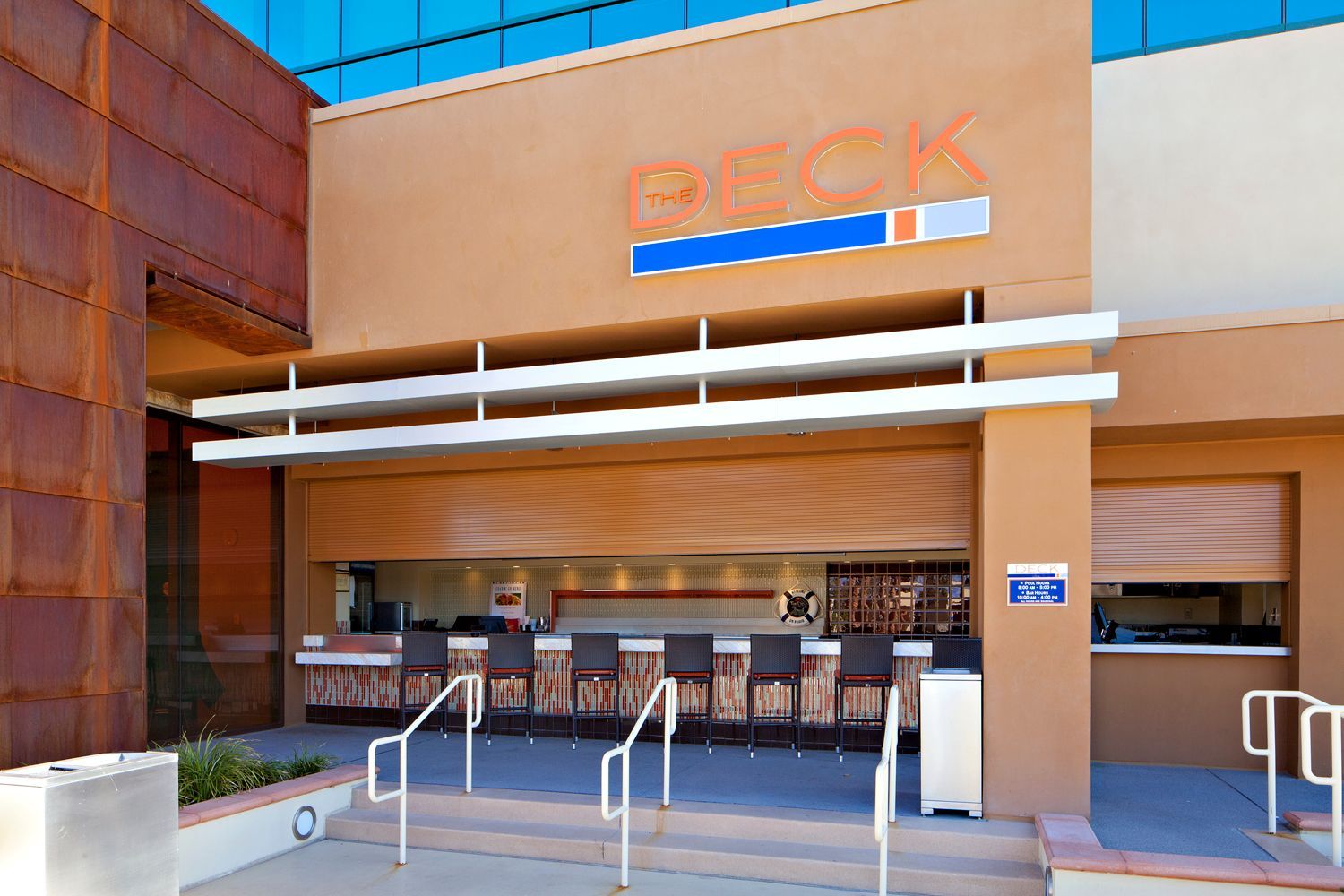

Non Rated Service Doors

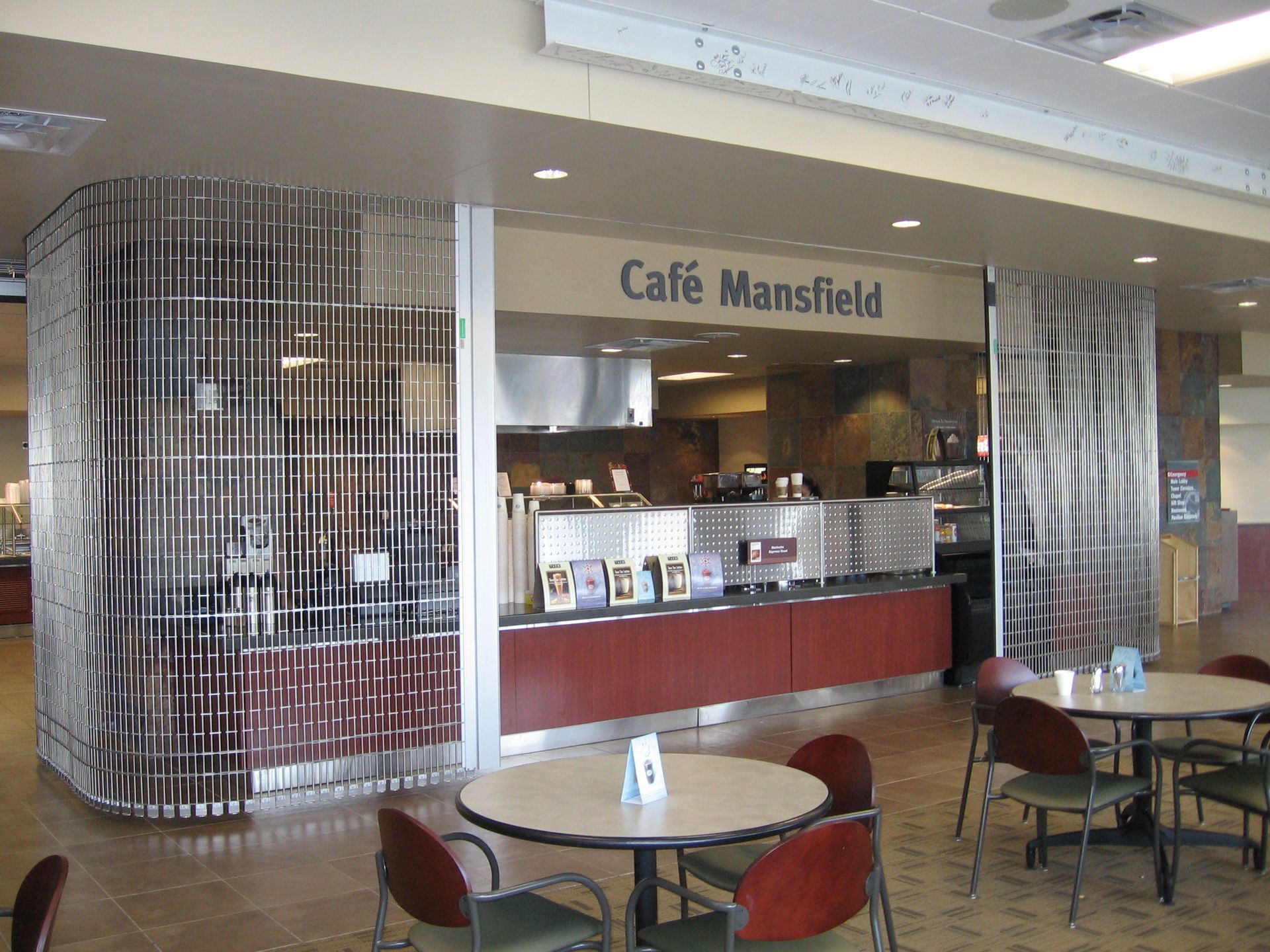

Non Rated Security Grilles
