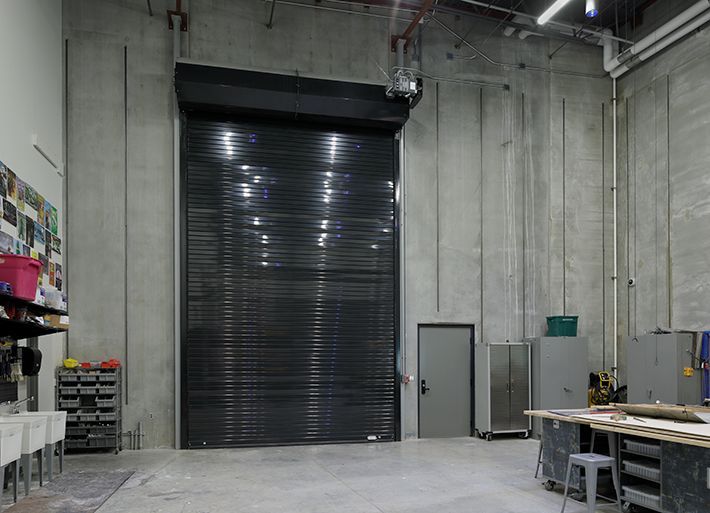

Auto-Set®  Model FSFD Variants

Some openings ask for more than fire protection.



  • FSFD-IS adds insulation for openings that separate conditioned spaces.
  • FSFD-STC adds an acoustical rating where sound control matters.
  • FSFD-TR carries a temperature rise rating for the openings where needed.

FIRE

RATED

SMOKE

RATED

OVERHEAD

COILING

NO

EGRESS

FIRE

RATED

 90 MIN FIRE RATED UNDER UL10B

SMOKE RATED

SMOKE AND DRAFT RATED UNDER UL1784

OVERHEAD COILING

COIL BOX ABOVE OPENING

NO

EGRESS

 NOT AVAILABLE WITH EGRESS

FSFD-IS Insulated Fire Door

Fire protection with a thermal break. The insulated curtain holds back heat and cold transfer across the opening, making it the right fit where conditioned spaces meet rated separation. Full fire and smoke protection, with energy performance built in.

FSFD-STC Acoustical Rating

Rated for fire, built for quiet. The FSFD-STC carries an STC acoustical rating that holds sound where it belongs, ideal for theaters, classrooms, and performance spaces. Fire separation that keeps the noise down on both sides of the opening.

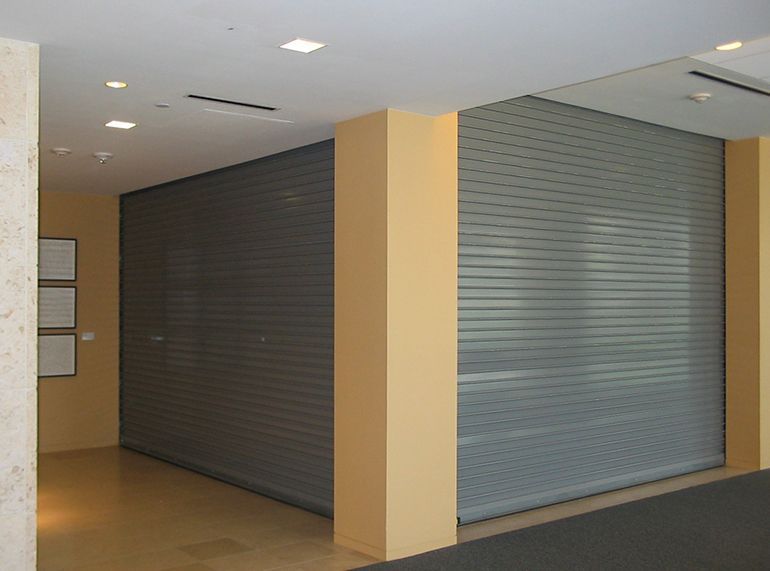

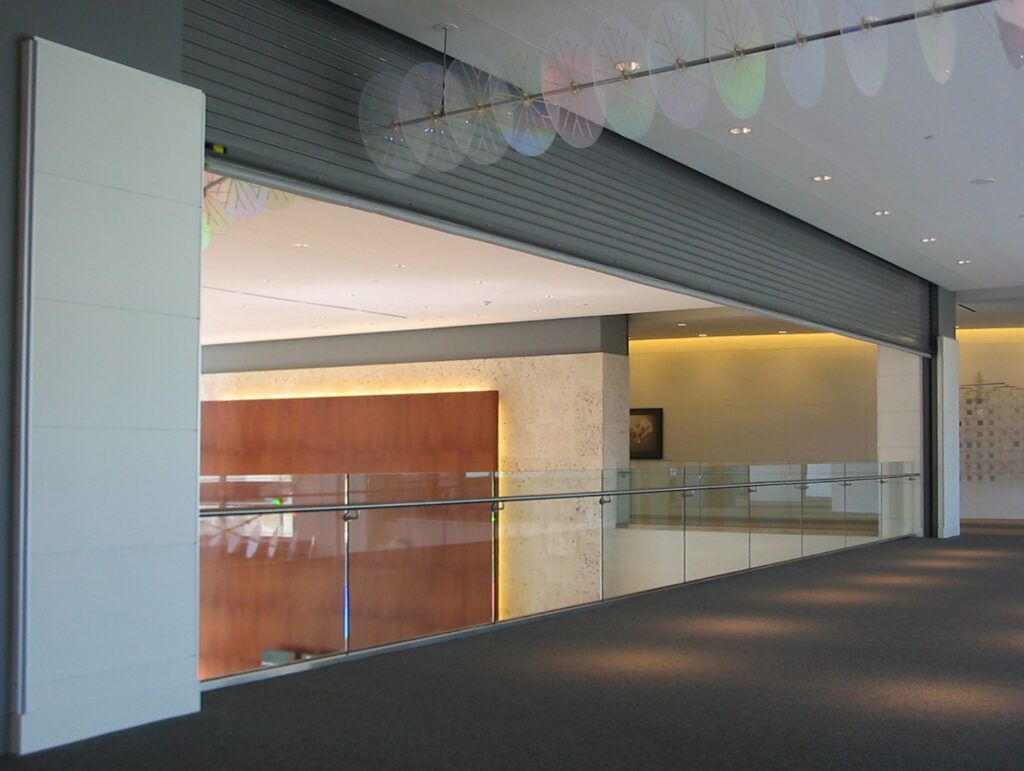

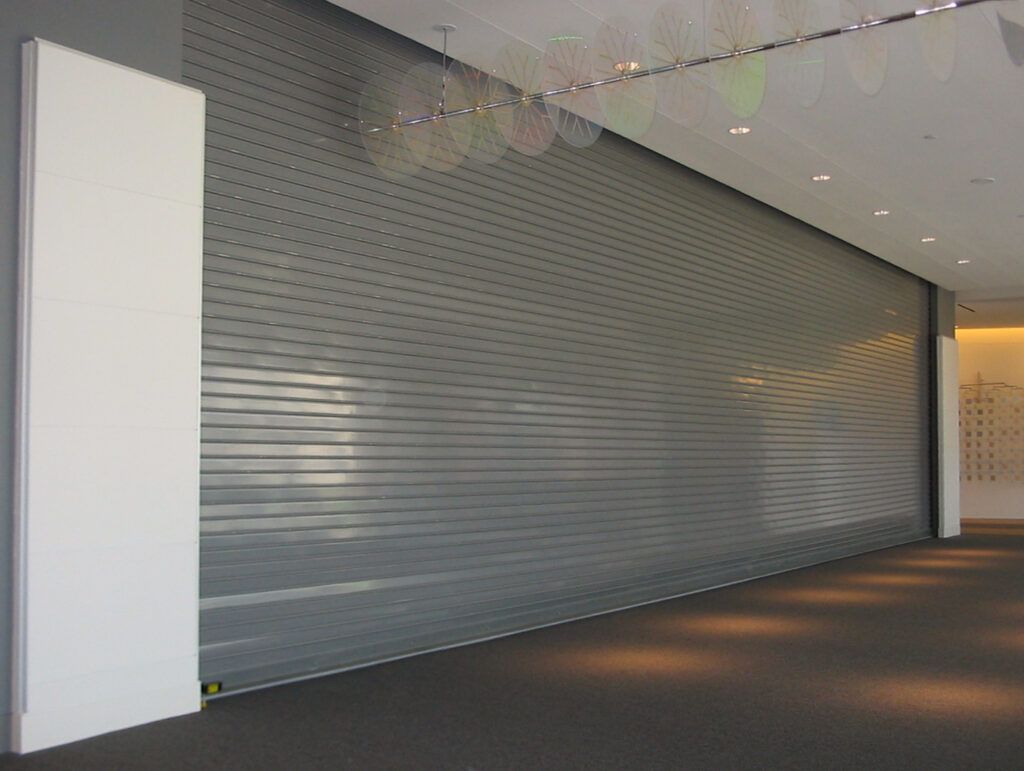

FSFD-TR Temperature Rise

Extra protection, for when you need it. The FSFD-TR limits heat transfer through the opening, rated at 650 degrees over 30 minutes, so the protected side stays safer for the occupants around it.

All the specs  you need. Ready for your next project.

Download Specs

Clear, simple, complete. Download every detail you need.

 Download Details

Same fire protection. Rated three ways.

Three ratings. Endless protection.

These specialty FSFD models are overhead coiling fire doors that offer an automatic resetting motor, in insulated, acoustical, and temperature rise rated designs. Easily reset each fire shutter after an alarm event without hassle.

The details that matter.

Ratings

  • 1-4 hr UL10B
  • UL 1784 Smoke & Draft Labeled
  • 90-minute rated assembly available with a 650° F over 30 minutes
  • Temperature Rise rating when required (see Model FSFD-TR)
  • Available STC Rating up to 34 (see Model FSFD-STC)
  • R value up to 9.3  (see Model FSFD-IS)


Egress

Not available with this product line

(see Model T5000, or Model T2500 if egress is needed)

Operation

  • Electric Motor Operation - Outboard Motor
  • Manual Hand Chain
  • Manual Hand Crank


  • Fail safe design - automatic self closing mechanism does not require power operation to self-close

Special Features



Available Sizes

  • Widths up to 80'-0"
  • Heights up to 48'-0"


  • For larger sizes and custom configurations consult the factory


Finishes

  • McKeon Sterling Grey
  • RAL Powder Coat
  • Stainless Steel

Download our specs.

Operation

-M = Outboard Electric Motor Operator

-HC = Manual Hand Chain

-HK = Manual Hand Crank

Finish

-G = McKeon Sterling Grey (one color option)

-PC = Powder Coat, 188 standard colors

-SS = Stainless Steel, No. 4 polish finish

FSFD-IS

Specs

McKeon Sterling Grey (-G)

Standard finish

RAL Powder Coat (-PC)

188 color selection

Stainless Steel (-SS)

No. 4 Polish

FSFD-STC

Specs

McKeon Sterling Grey (-G)

Standard finish

RAL Powder Coat (-PC)

188 color selection

Stainless Steel (-SS)

No. 4 Polish

FSFD-TR

Specs

McKeon Sterling Grey (-G)

Standard finish

RAL Powder Coat (-PC)

188 color selection

Stainless Steel (-SS)

No. 4 Polish

RAL Powder Coat Chart

Explore our RAL 49 Series  Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.

Download our details.

FSFD-IS

Details

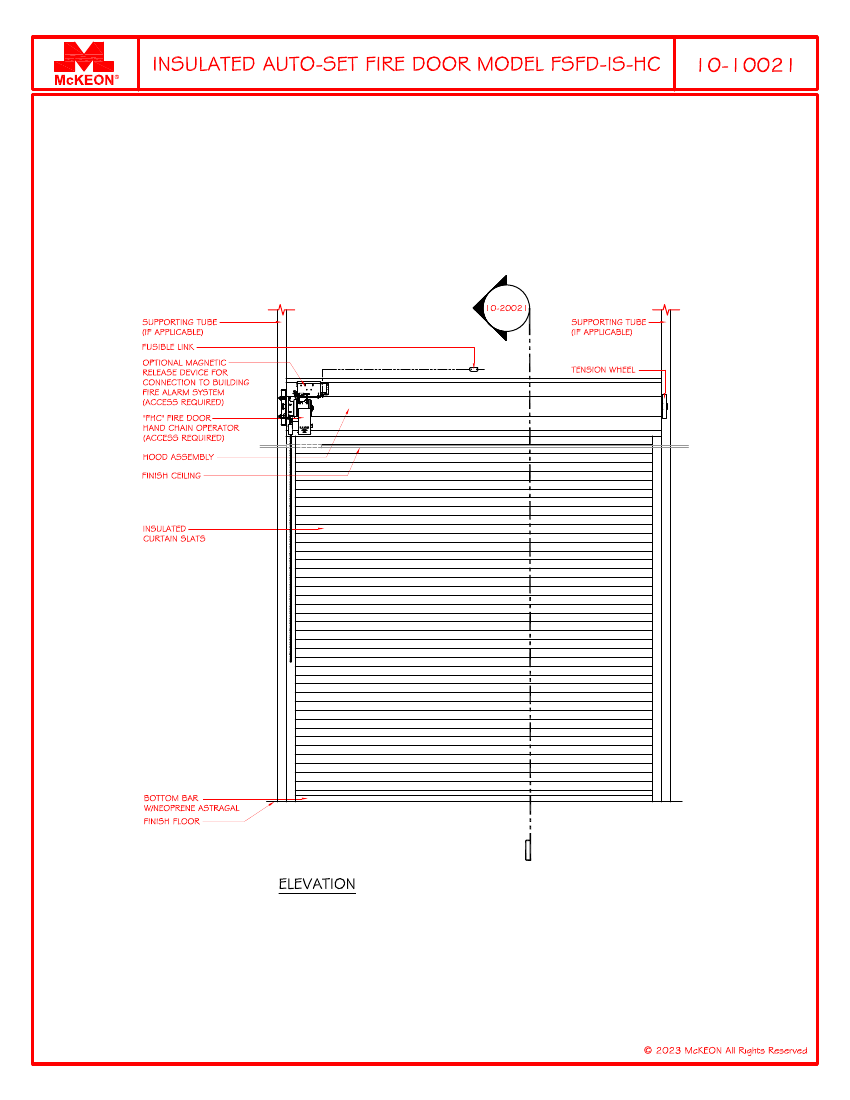

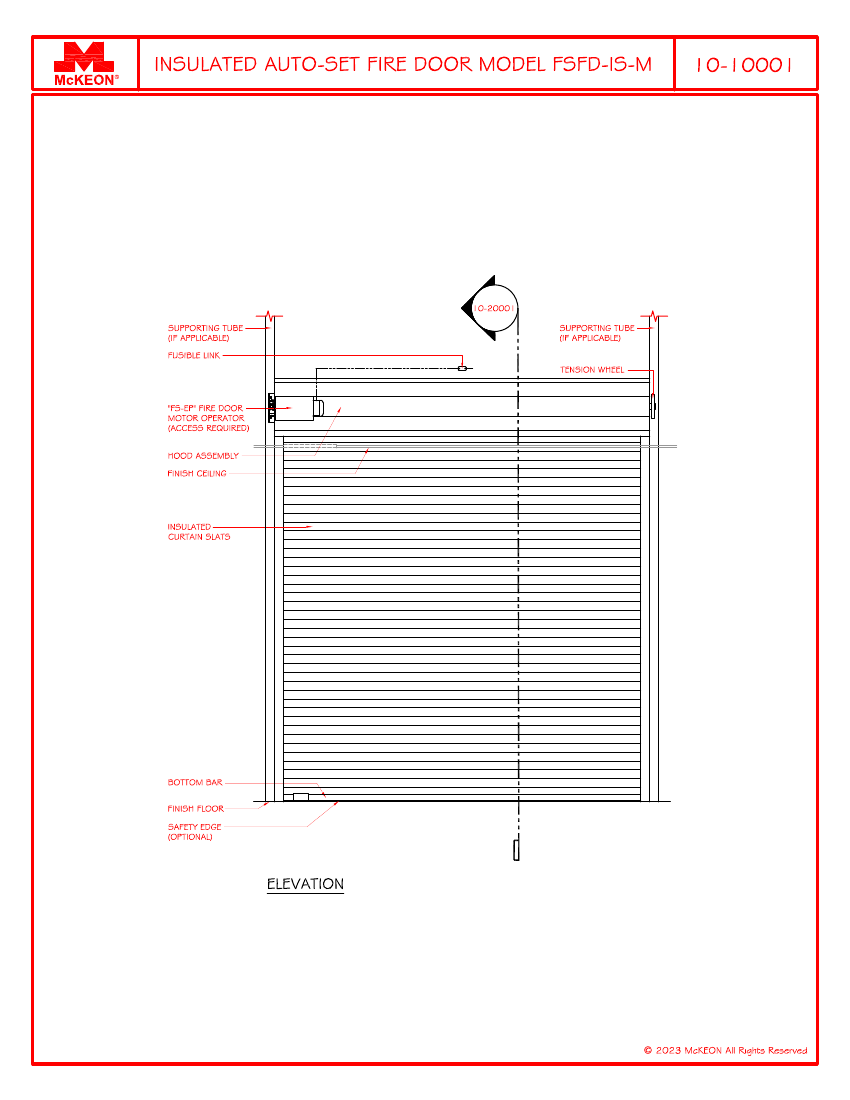

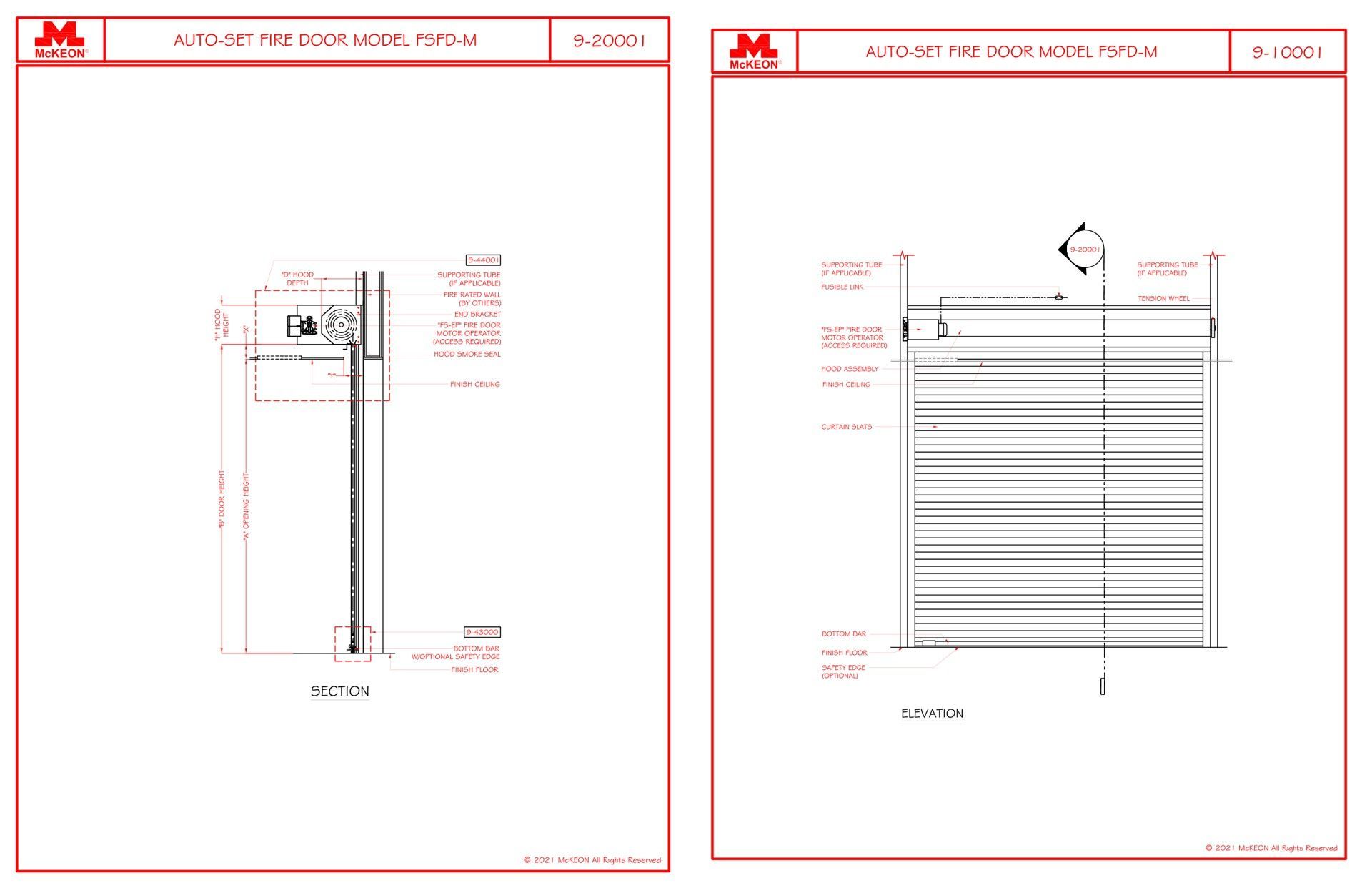

FSFD-IS-M Details

  • Overhead Coiling
  • Electric Motor Operation - Outboard Motor
  • No egress

FSFD-IS-HC Details

  • Overhead Coiling
  • Manual Operation - Hand Chain
  • No egress

FSFD-IS-HK Details

  • Overhead Coiling
  • Manual Operation - Hand Crank
  • No egress

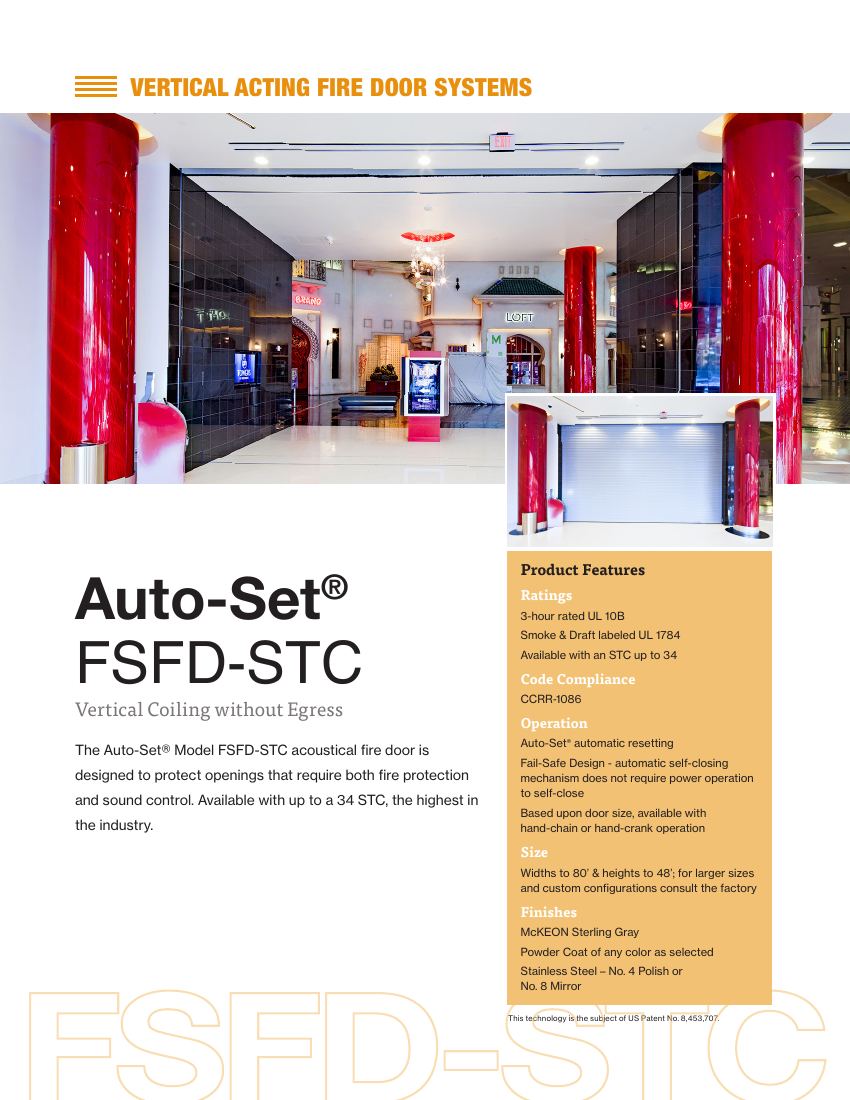

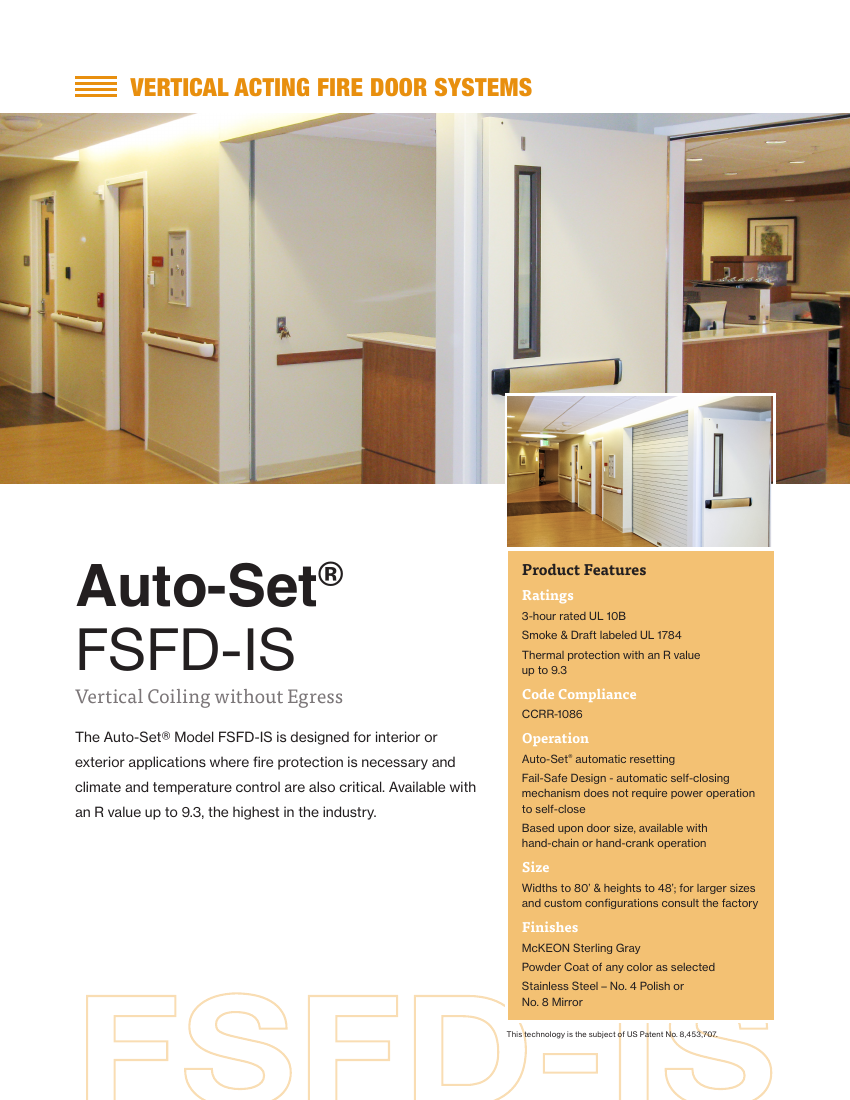

FSFD-IS Cut Sheet

  • Overhead Coiling
  • Electric Motor or Manual Operation
  • No egress

FSFD-STC

Details

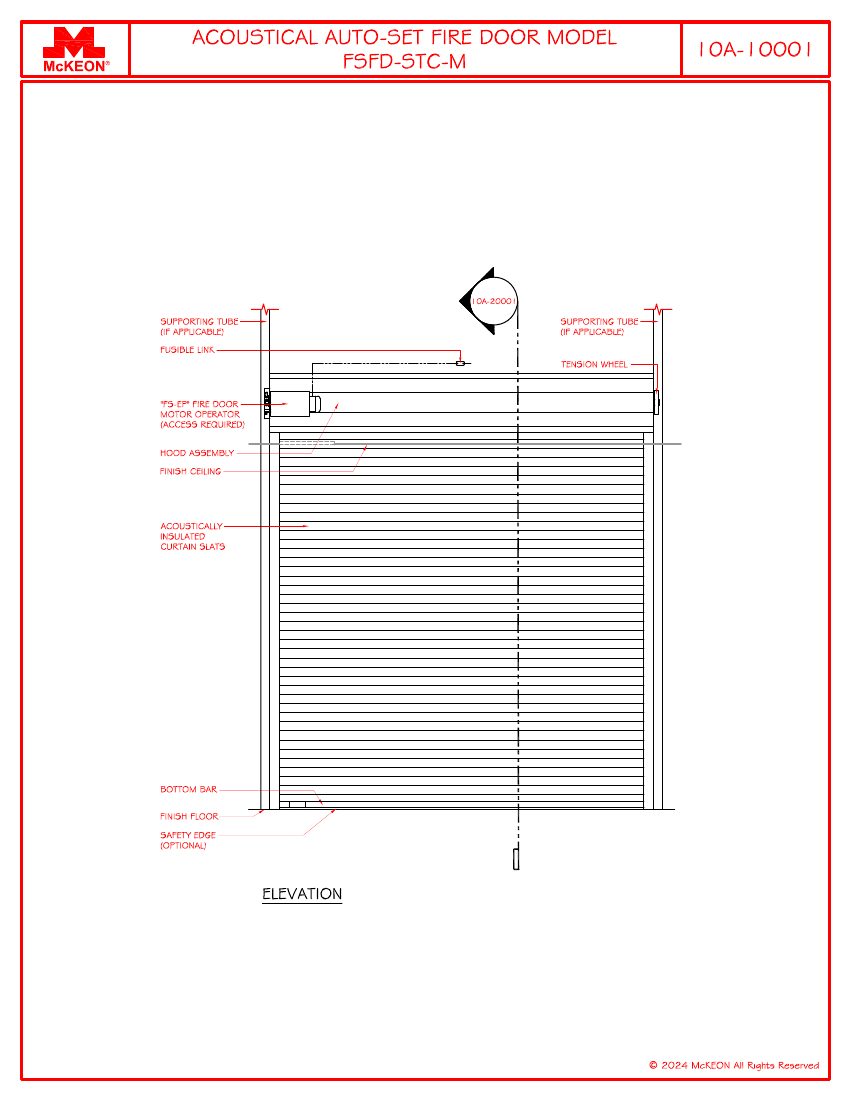

FSFD-STC-M Details

  • Overhead Coiling
  • Electric Motor Operation - Outboard Motor
  • No egress

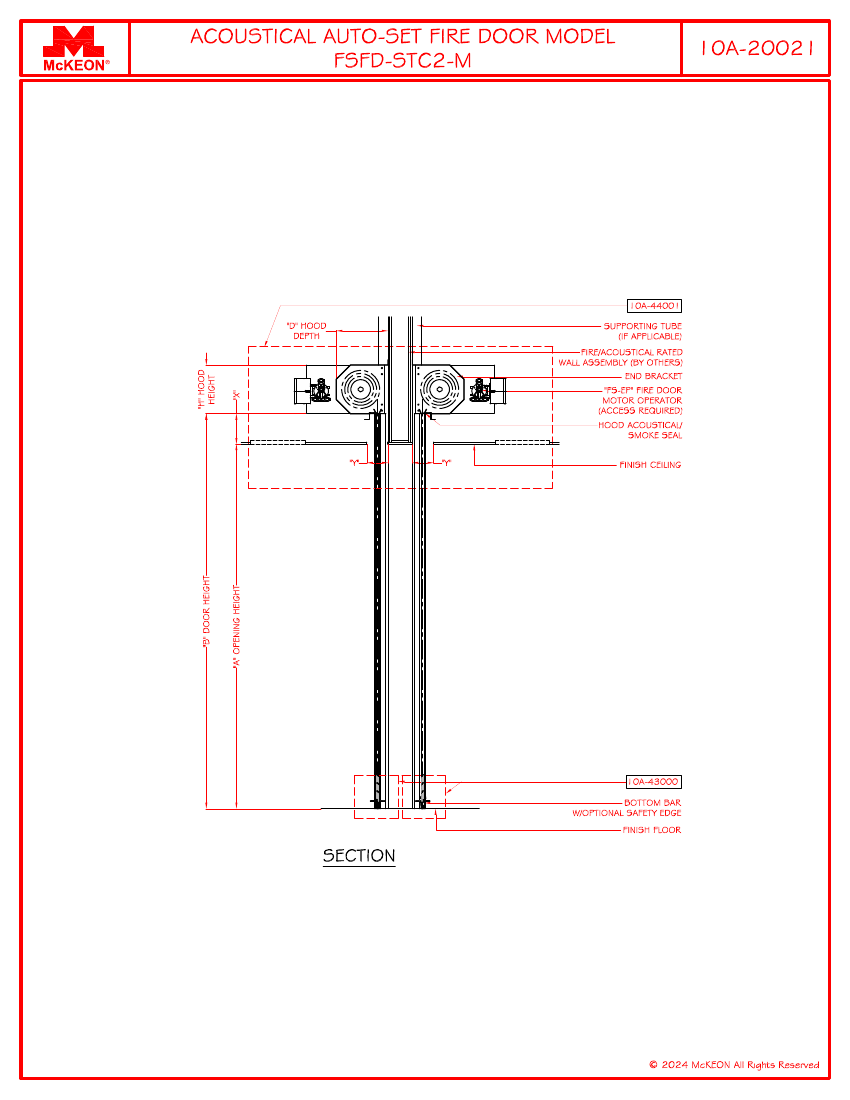

FSFD-STC2-M Details

  • Overhead Coiling
  • Electric Motor Operation - Outboard Motor
  • No egress

FSFD-STC Cut Sheet

  • Overhead Coiling
  • Electric Motor
  • No egress

FSFD-TR

Details

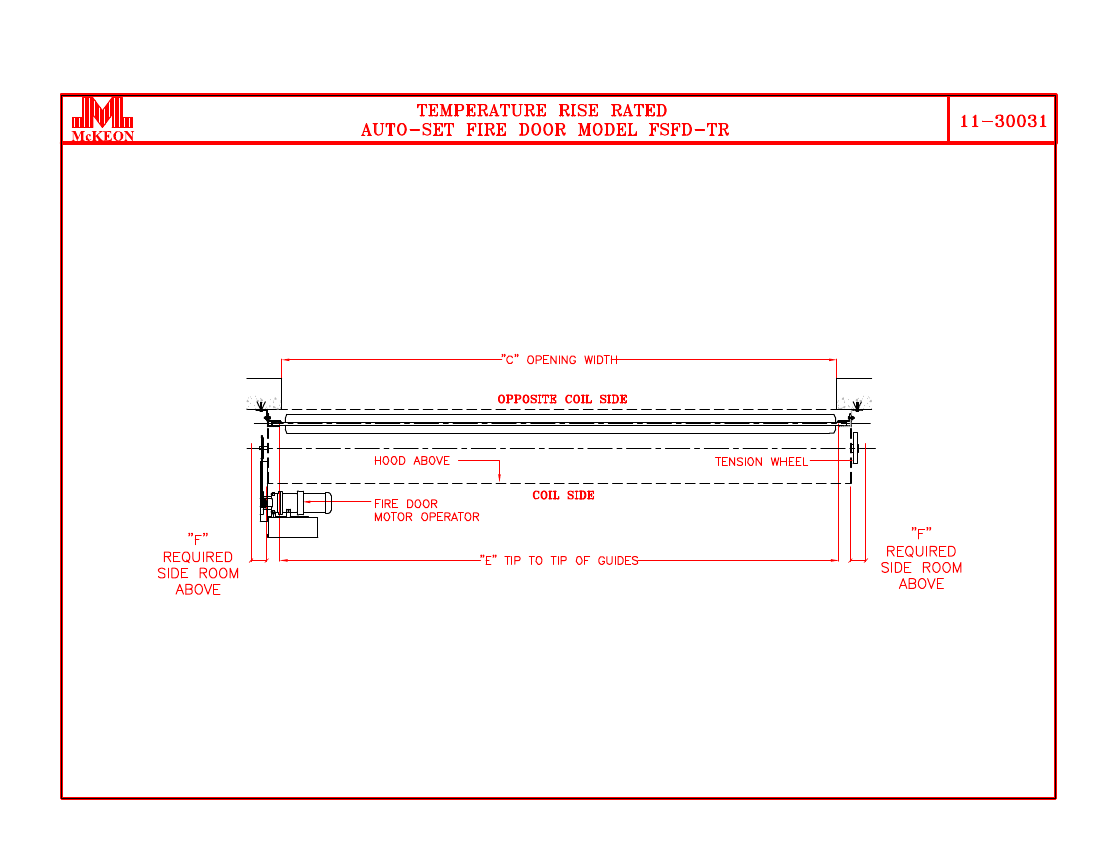

FSFD-TR-M Details

  • Overhead Coiling
  • Electric Motor Operation - Outboard Motor
  • No egress

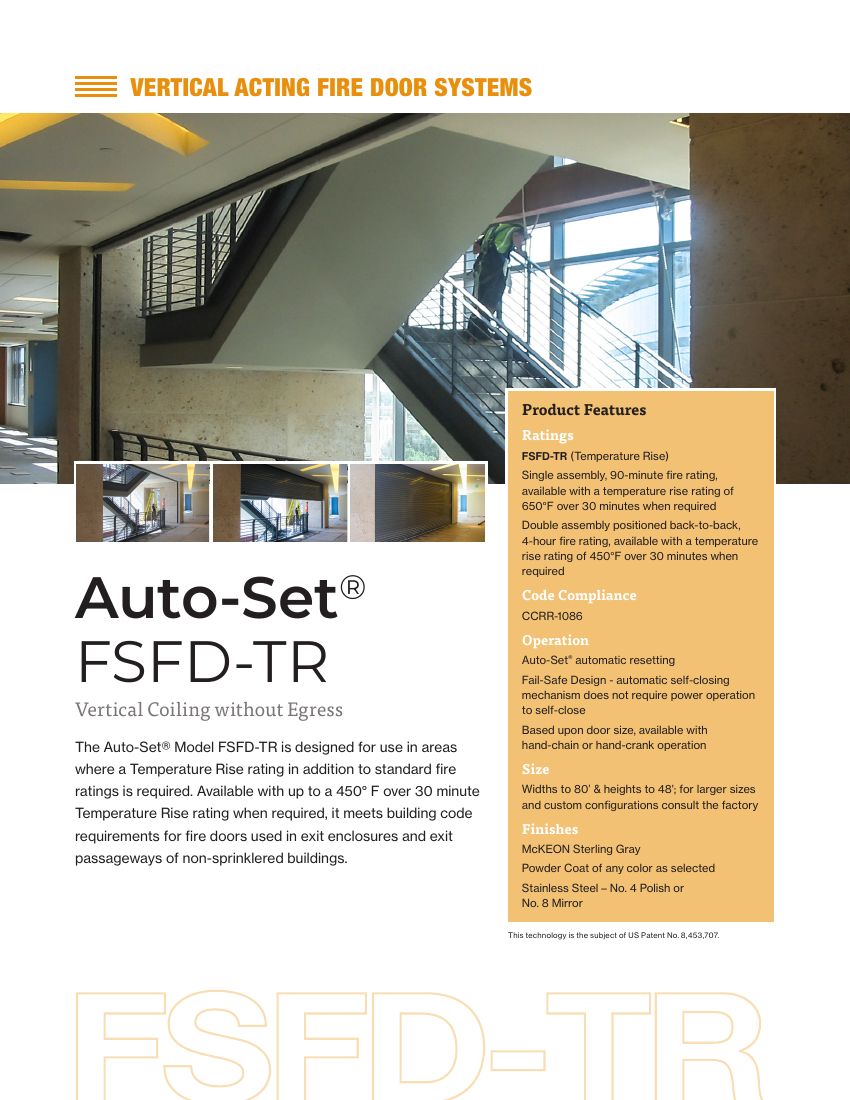

FSFD-TR Cut Sheet

  • Overhead Coiling
  • Electric Motor
  • No egress

Download individual PDF sheets, CADs and more BELOW.

Download it all.

FSFD-IS Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.

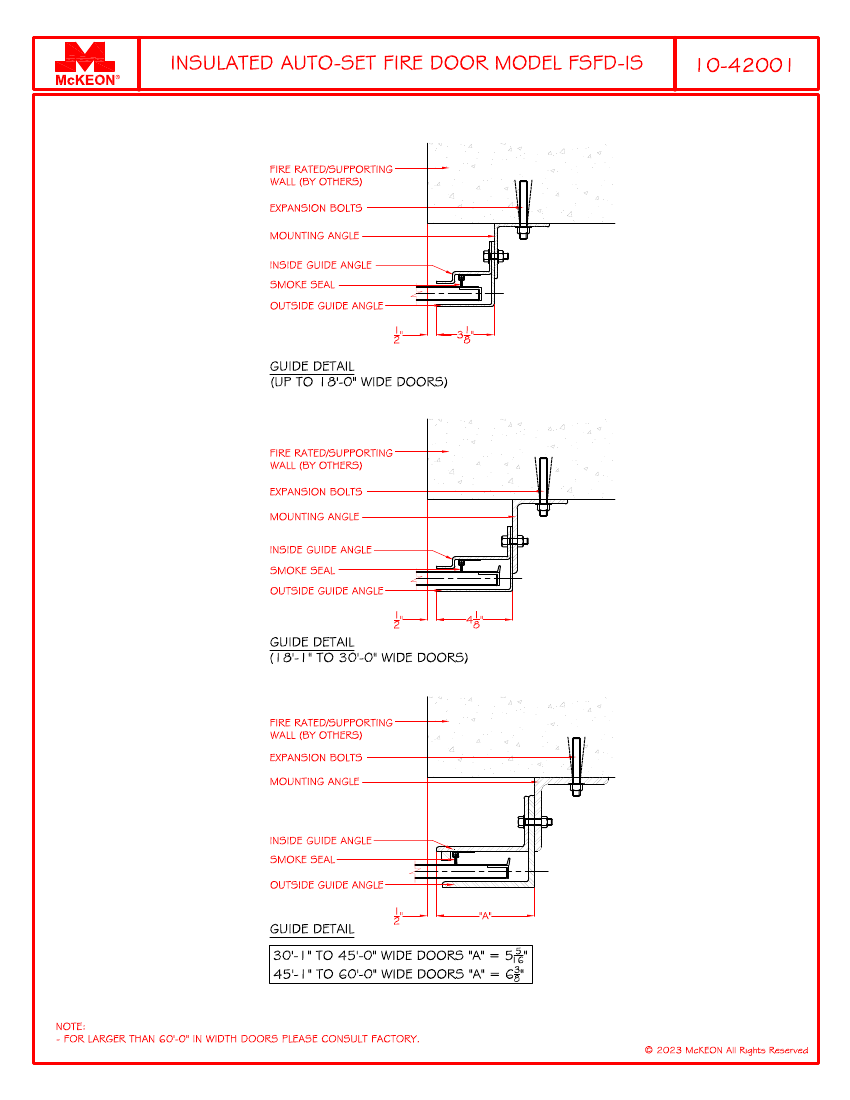

  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download All .PDF Files

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download ALL .DWG Files

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planning.


  • FSFD-IS-M-G (McKeon Sterling Grey)
  • FSFD-IS-M-PC (RAL Powder Coat Selection)
  • FSFD-IS-M-SS (Stainless Steel No. 4 Polish)

  • FSFD-IS-HC-G (McKeon Sterling Grey)
  • FSFD-IS-HC-PC (RAL Powder Coat Selection)
  • FSFD-IS-HC-SS (Stainless Steel No. 4 Polish)

Download All .DOCX Files

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.




• FSFD-IS Series Product Cut Sheet

• RAL Color Chart




Download All .PDF Files

Access third-party testing reports that verify this product meets all required standards. Download the complete listing report below.




• Listing Report FSFD-IS





Download All .PDF Files

FSFD-STC  Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download All .PDF Files

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download ALL .DWG Files

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planning.


• FSFD-STC34-M-G (McKeon Sterling Grey)

• FSFD-STC34-M-PC (RAL Powder Coat Selection)

• FSFD-STC34-M-SS (Stainless Steel No. 4 Polish)

Download All .DOCX Files

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.




• FSFD-STC Series Product Cut Sheet

• RAL Color Chart




Download All .PDF Files

Access third-party testing reports that verify this product meets all required standards. Download the complete listing report below.




• Listing Report FSFD-STC





Download All .PDF Files

FSFD-TR  Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download All .PDF Files

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download ALL .DWG Files

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planning.


  • FSFD-TR-M-G (McKeon Sterling Grey)
  • FSFD-TR-M-PC (RAL Powder Coat Selection)
  • FSFD-TR-M-SS (Stainless Steel No. 4 Polish)



Download All .DOCX Files

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.




• FSFD-TR Series Product Cut Sheet

• RAL Color Chart




Download All .PDF Files

Access third-party testing reports that verify this product meets all required standards. Download the complete listing report below.




• Listing Report FSFD-TR





Download All .PDF Files
